3 Way NC Solenoid Valve Armature Plunger Tube Assembly Normally Closed
3 Way NC Solenoid Valve Armature Plunger Tube Assembly Normally Closed
The solenoid armature plunger is the pressure-tight internal part of a solenoid valve. BRANDO produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.
The standard seals used are made of FKM. NBR, HNBR, MVQ, EPDM and FFKM are available on request. Hard-sealing materials such as PTFE are available for process technology applications. This expands the range of applications to include a variety of media for lower and higher temperature ranges. Sealing materials suitable for oxygen or other aggressive gaseous media are available on request.

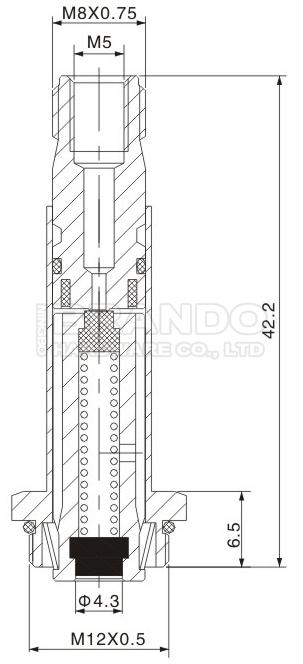

Dimension & Data of Solenoid Valve Armature, Coil:
|
BRANDO Model
|
BAPC309029005
|
|
Funtion
|
3 Way Normally Closed
|
|
Connection Type
|
Thread
|
|
Plunger Tube Material
|
Brass
|
|
Seal Material
|
NBR, FKM, EPDM
|
|

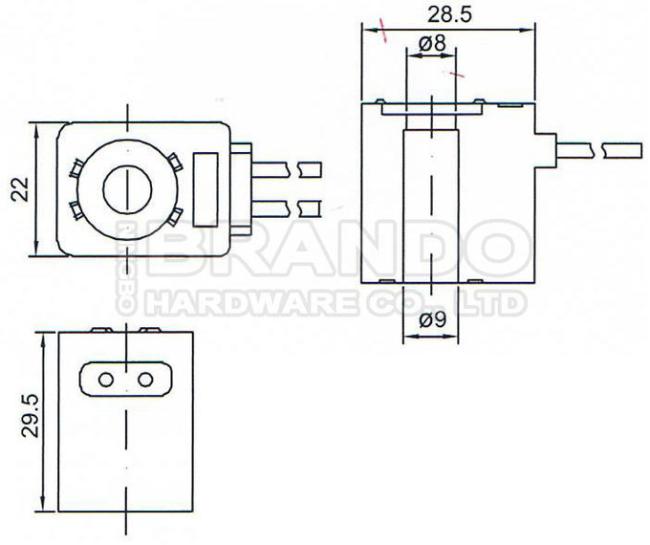

BRANDO Model
|
BB09029504
|
|
Ordering Code
|
EVI 7/9
|
|
Voltage
|
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
|
|
Power
|
AC: 4-8VA
DC: 4-8W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
Flying Leads
|
|

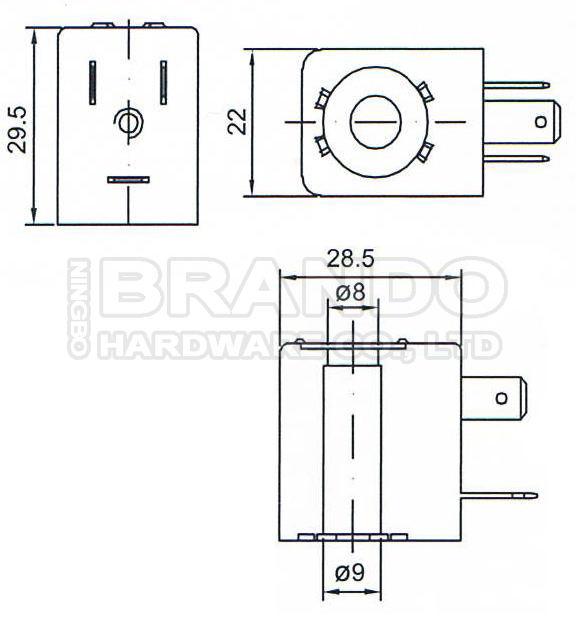

BRANDO Model
|
BB09029516
|
|
Ordering Code
|
EVI 7/9
|
|
Voltage
|
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
|
|
Power
|
AC: 4-8.5VA
DC: 3-8.5W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Protection Class
|
IP65
|
|
Connector
|
DIN43650B
|
