Air Water Oil Gas Pneumatic Solenoid Valve Normal Close With Copper Coil
Brass Body 1 Inch Water Solenoid Valve Normal Close With Copper Coil 2W-250-25
The 2S series electromagnetic water valve body is made of brass and is suitable for various industries. We offer various sizes and specifications, AC220V DC24V DC12V voltage for you to choose.
Production of solenoid valves, we are professional.If you want to purchase other types solenoid valve or pneumatic pulse valve,you can browse our website and you will find a new land.

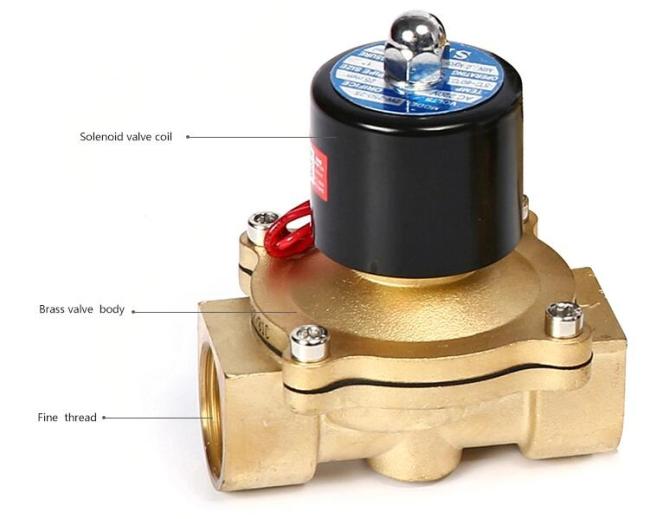

structure
1.Hexagonal fixing screw cap
2.Metal coil protection cover
3.Copper Coil
4.Hexagonal set screw
5.Brass body
6.Wire protection cover
7.Metal spool
8.Coil gasket
Specification
| Model | 2W250-25 |
| Fluid | Air/Water/Oil |
| Action Mode | Pilot-operated Type |
| Type | Normal Closed |
| Port Diameter(mm^2) | 25 |
| CV Value | 12 |
| Port Size | G1 |
| Fluid Viscosity | Under 20CS |
| Working Pressure | Water/Oil: 0-0.5MPa Air: 0-0.7MPa |
| Proof Pressure | 1.0MPa |
| Temperature | -5-85℃ |
| Working Voltage Range | ±10% |
| Material Body | Brass |
| Material Seal | NBR |
| Coil Power | 20VA |
Size of 2W Series Solenoid Valve
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Orifice Size(mm) | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| Port Size | G3/8" | G1/2" | G3/4" | G1" | G 1 1/4" | G1 1/2" | G2" |
| CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |

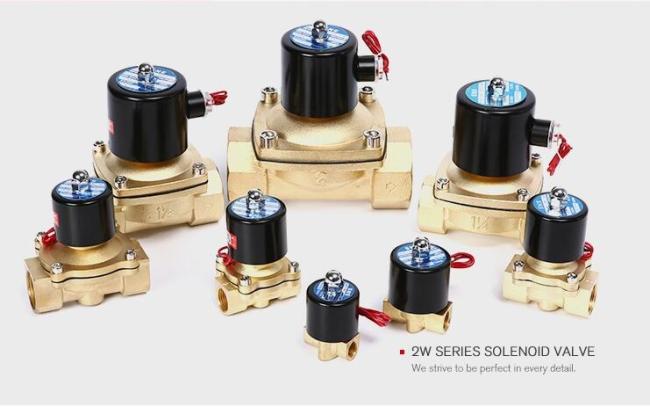

2W Series Solenoid Valve

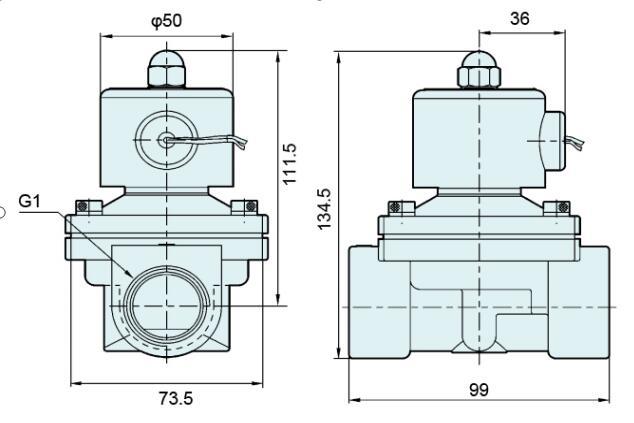

Dimension Drawing of 2W-250-25

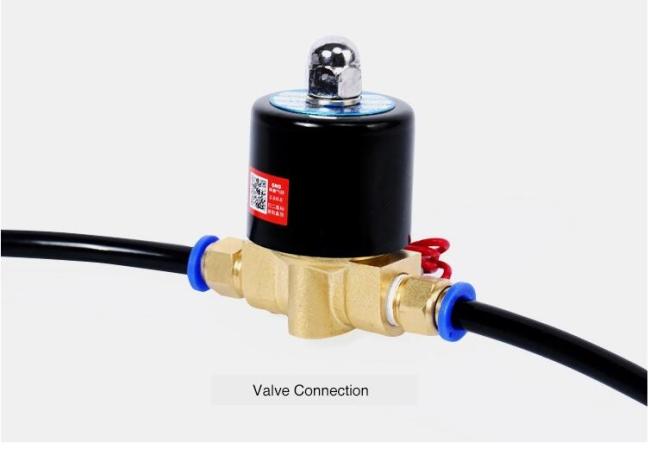

Details of 2W-250-25
How to choose according to different job needs?
1. When the solenoid valve needs to be closed for a long time and the closing time is longer than the opening time, the normally closed type is selected.
2. When the solenoid valve needs to be opened for a long time and the opening time is longer than the closing time, select the normally open type.
3.When it is necessary to turn on for a long time and close it for a long time, select the normally open normally closed type.
4.Some conditions for safety protection, such as furnace flame monitoring, can not be selected for normal opening, should be selected for long-term energization type
How to judge whether the coil is working or burned out?
1. Measure the resistance. If the resistance is 0 or infinite, the coil is short-circuited or burned out.
2. Take the iron screwdriver without magnetic, close to the nut on the coil. If there is magnetic adsorption after the coil is energized, the coil will work normally.
please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
