AC220V Stainless Steel Pneumatic Solenoid Valve 2S-250-25 1 Inch Port Size
AC220V Stainless Steel Water Solenoid Valve 2S-250-25 Normally Close 1" Inch
The 2S series stainless steel water valve has high strength, high hardness, more durability, and brass coils for more accurate switching. Suitable for large-scale water equipment such as sewage treatment systems, irrigation systems, and boiler equipment.
The Standard voltage is AC220V,if you have other demand,we also can offer.
Specification of solenoid valves
| Model | 2S-250-25 |
| Port size | 1" |
| Valve body material | stainless steel |
| Fluid | air,water,gas,oil |
| Acting type | Normally closed type |
| CV valve | 12 |
| Voltage | 220V AC |
| Quality Assurance | 8~10years |
| Packing | plastic bag,standard export packge |
| Mini oder |
1 Pc |

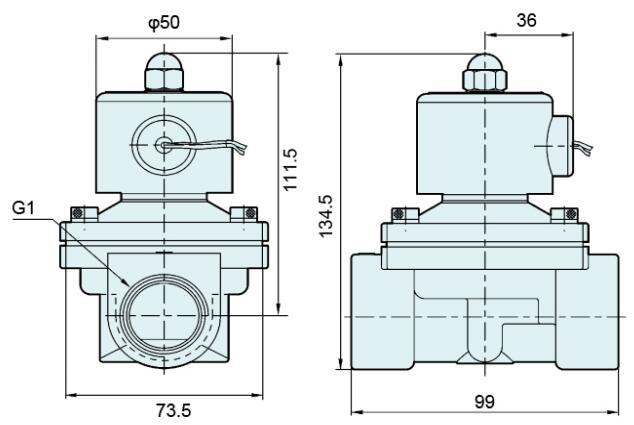

Dimension Drawing of solenoid valve
| Model | Type | Aperture of Flow Ratea | Port size | Working pressure | Packing Dimension |
| 2S-250-25 | Normal Close | 25 | G1" | 0-07MPa | 73.5x99x134.5cm |

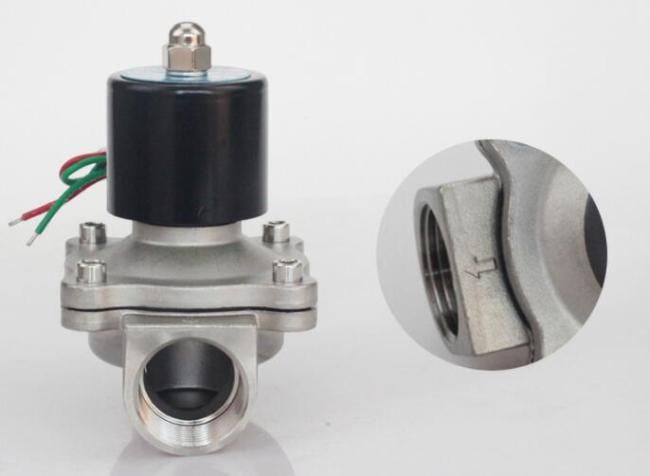

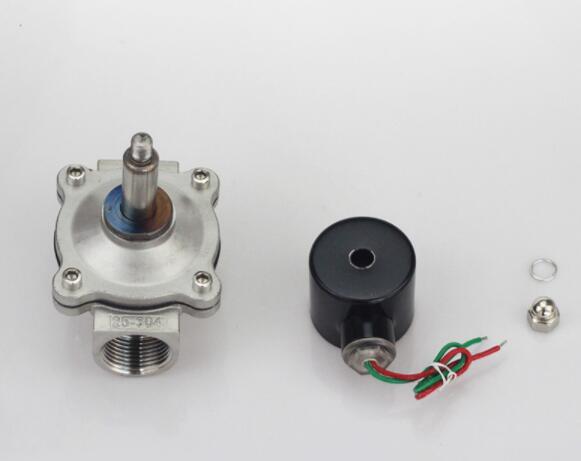

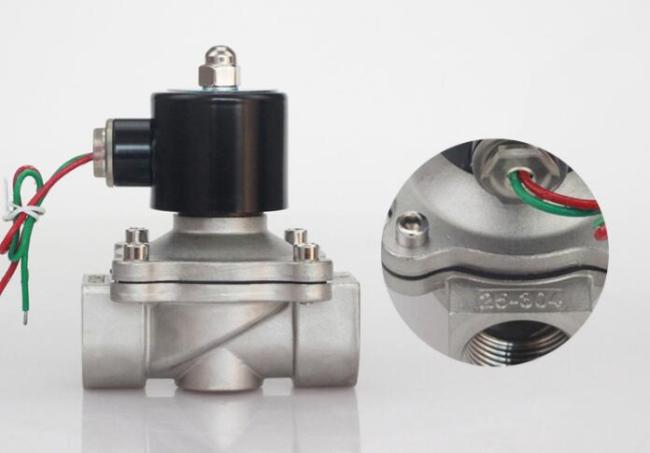

Details of Solenoid Valve
Characteristics
The use of a direct-acting diaphragm structure without pressure start expands its field of use, and the flat diaphragm structure is reliable in opening and closing, and the service life of the product is enhanced. The use of plastic coils enhances the safe use of this product in a wide range of environments.
Water solenoid valve application
The water solenoid valve is suitable for working with water or liquid, and can automatically control or remotely control the on and off of working medium pipelines such as water, oil and liquid. Since the valve is rubber-sealed, the cleanliness of the working medium is greatly reduced, and the opening and closing speed is high, and the reliability is high.
1: This series is made of all stainless steel, suitable for weak acid and weak alkali, etc. It is an ideal control element for pure water equipment, food, medical and other machinery.
2: All stainless steel solenoid valves are actuators for industrial process automation control systems. The device can be automatically turned on or off after receiving the electronic control signal to realize the on/off or flow regulation control of the fluid medium in the pipeline. Solenoid valves can be widely used in weaving, printing, chemical, plastics, rubber, pharmaceutical, food, building materials, machinery, electrical appliances, surface treatment, etc.; and bathroom, canteen, air conditioning, etc.
3: This series of solenoid valves are mainly used for the control of liquid media such as corrosive liquids, ultra-clean liquids and edible liquids. This series of solenoid valves are mainly used for the control of media such as corrosive liquids and ultra-clean gases.
please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
Wait your inquiry!
