Nitrile Stainless Steel Diaphragm for 1 1/2 Inch Autel Type Pulse Valve

The air is uniformly distributed avoid channeling Initially a coat of material forms on the bags Subsequently, the coat acts as the filtering medium. The dust is accumulated on filter elements while the air passes thorough the filter bags from outside to inside. the accumulated powder is dislodged from the bags by reverse pulse-jet air intermittently. The dislodged powder falls on bottom cone and is discharged through powder discharge valves. The dust free air is sucked by induced draft fan and is exhausted to atmosphere.

Suitable for dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

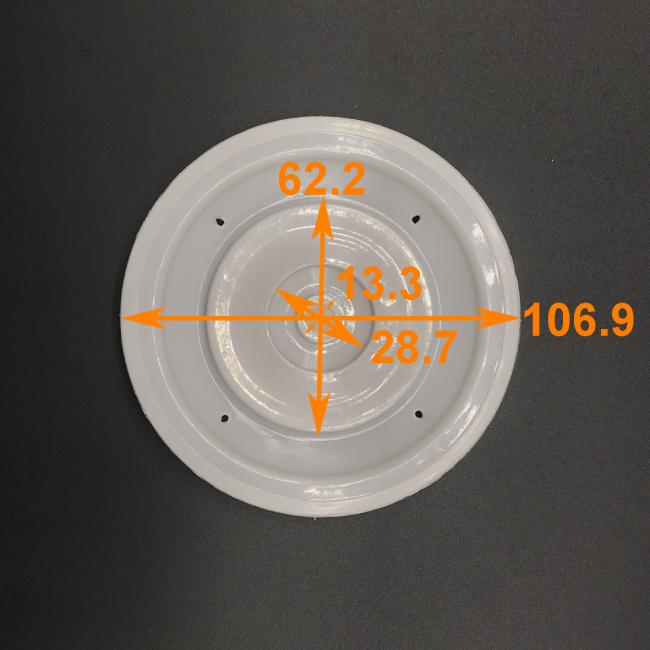

Detailed datas for reference

Live picture of dust collector

That kind of double diaphragm electromagnetic pulse valve how to work ah, do you know the advantages?

Double diaphragm pulse valve is a valve body, valve body, valve cover, the diaphragm and the control of diaphragm, the compressed air into the pulse valve chamber, at the same time through the orifice, respectively, into the chamber, the chamber pressure equal protection by electromagnetic valve is closed, the control right and the right side of the main diaphragm of diaphragm pressure area is greater than the left, and the effect of spring, were closed, the relief port output filter bag is not blowing, when electric instrument signal, control solenoid valve open diaphragm chamber on the right side of the compressed air discharged into the atmosphere by the electromagnetic valve, the pressure is lower than the control of diaphragm on the left side of the room, make the control to the right of diaphragm and open the relief port, The compressed air in the right chamber of the main diaphragm is discharged into the atmosphere, and its pressure is lower than that of the left chamber of the main diaphragm, so that the main diaphragm moves to the right, and the compressed air is ejected from the left chamber of the main diaphragm to the output outlet, so that the filter bag is sprayed.

Are there air holes on the side and in the middle of the pulse valve diaphragm?

Select pulse valve diaphragm can not simply look at membrane pores in what position, but also look to and supporting the use of pulse valve diaphragm in porosity in what position, if the pulse valve in stomata in the edge edge will use in porosity of the diaphragm to match, if there is no loophole edge of pulse valve should be used with porosity of diaphragm, if you don't corresponding pulse valve and the membrane pores, can cause air flow is not smooth, pulse valve can't work normally, be sure to check carefully!
