24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air / Water
24V DC VX31 / VX32 / VX33 Direct Operated 3 Port Pneumatic Solenoid Valve For Air , Water , Oil , Steam
●VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3
Way Solenoid Valve 24v
●Medium: Water;;Air ;Neutral Gas;Air;Steam
●Acting Type: Direct Acting
●Seal Material: EPDM;VITON -5∽150℃ ;NBR-5∽80℃
●Port Size :1/8";1/4", ZG ,PT, NPT are available

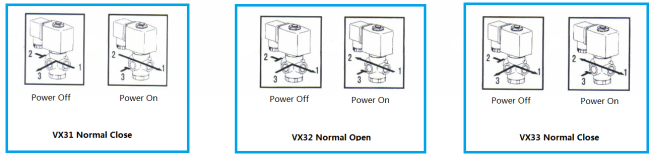

VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Symbol:

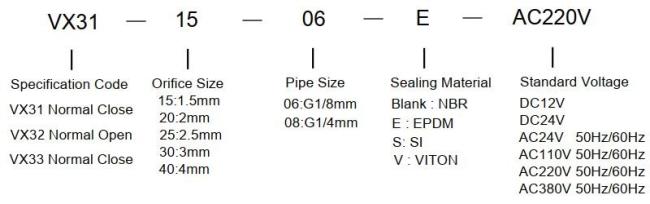

VX31 / VX32 / VX33 Direct Operated 3 Way Solenoid Valve Ordering Code:
VX31 / VX32 / VX33 Solenoid Operated Valve Feature:
1, Equal to SMC VX31 Series solenoid operated valve
2, Conformity managed in accordance with standards:
ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.
3 Way Solenoid Valve Specification:
|
Solenoid Model |
Orifice Size |
Cv Value |
Port Size |
Working Pressure(Kgs/c㎡) |
Medium Temperature |
Body Material |
|
| AC | DC | ||||||
| VX31 | 1.5 | 0.07 |
1/4" Or 1/8" |
13 | 11 |
NBR:-5∽85℃ EPDM:-5∽150℃ VITON:-10∽150℃ |
BRASS |
| 2.0 | 0.14 | 11 | 9 | ||||
| 2.5 | 0.21 | 9 | 7 | ||||
| 3.0 | 0.25 | 6 | 4 | ||||
| 4.0 | 0.35 | 3.5 | 2 | ||||
| VX32 | 1.5 | 0.07 | 13 | 11 | |||
| 2.0 | 0.14 | 11 | 9 | ||||
| 2.5 | 0.21 | 9 | 7 | ||||
| 3.0 | 0.25 | 6 | 4 | ||||
| 4.0 | 0.35 | 3.5 | 2 | ||||
| VX33 | 1.5 | 0.07 | 7 | 5 | |||
| 2.0 | 0.14 | 5 | 4 | ||||
| 2.5 | 0.21 | 4 | 3 | ||||
| 3.0 | 0.25 | 2.5 | 2 | ||||
| 4.0 | 0.35 | 1.7 | 0.8 | ||||

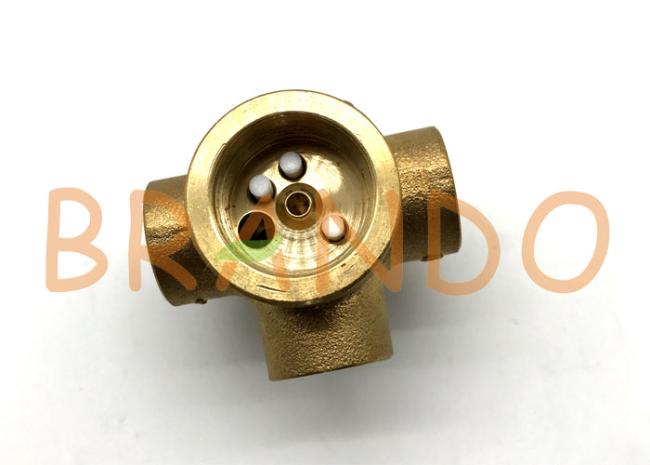

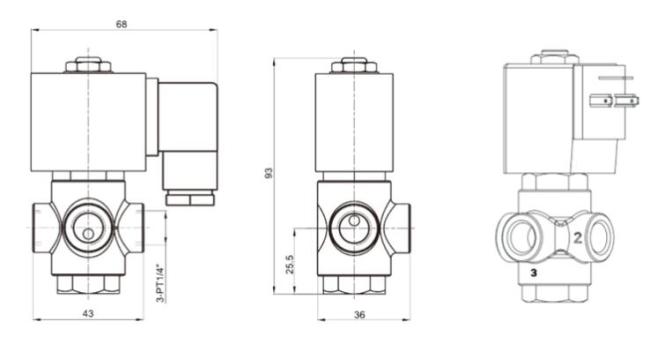

Valve Body Inner Detail of VX31 / VX32/ VX33 Solenoid Valve and Dimensions:

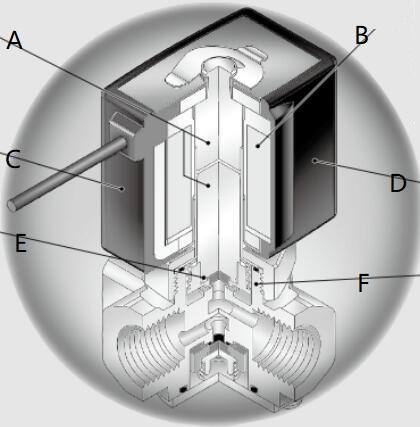

VX31 / VX32 / VX33 Direct Operated Three Way Solenoid Valve Design Features:
| Part Number | Description |
| A | Improved corrosion resistance, special magnetic material adopted |
| B | Reduced power consumption |
| C | Encosure Equivalent to IP65 |
| D | Flame resistance UL94V-0 conformed, flame resistance mold coil material |
| E | Low-noise construction, special construction enables to reduce the metal noise |
| F | Improved maintenance performance, Maintenanace is performed easily due to the threaded assemly |

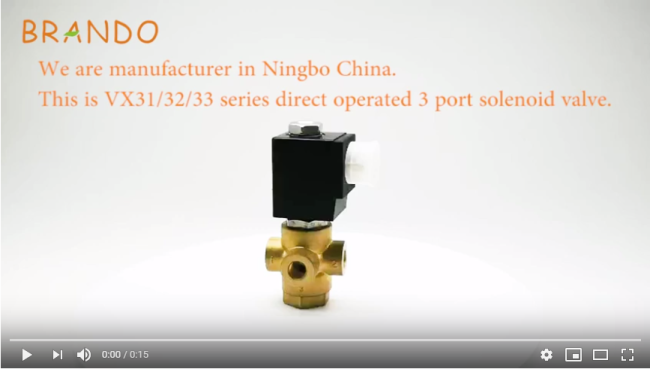

For more angle to view the solenoid valve, you can click below picture to take a look on Youtube websited that we posted:
Welcome your any question, just mail us or call us, we will response at once.
