AB510 Water Solenoid Valve Coil 28VA 31W 12VDC 24VDC 110VAC 220VAC
AB510 Water Solenoid Valve Coil 28VA 31W 12VDC 24VDC 110VAC 220VAC
This AB510 solenoid coil is popularly used in water solenoid valves, like 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2S040-10, 2S160-15, 2S200-20, 2S250-25. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 28VA, 31W. Solenoid valves consist of a coil, plunger and sleeve assembly. Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

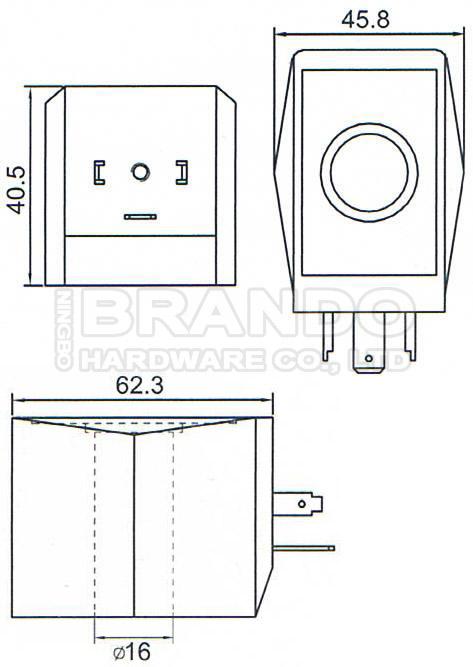

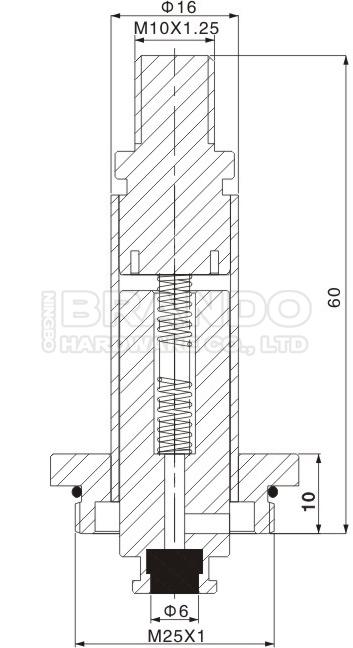

Dimension & Data of Water Solenoid Valve Coil, Armature:
|
BRANDO Model
|
BB16039502
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|
Power
|
28VA, 31W
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
DIN43650A
|
|
BRANDO Model
|
BAPC216038501
|
|
2 Way or 3 Way
|
2 Way
|
|
NC or NO
|
NC
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Moving Core Material
|
430FR
|
|
Shading Ring Material
|
Copper
|
|
Seal Material
|
NBR, EPDM, FKM
|
|
Mounting Type
|
Thread
|
Video of Coil For Water Solenoid Valve:
BRANDO Solenoid Valve Coils Production Video:
More Solenoid Valves for you to choose:
 |
 |
 |
| Brass Solenoid Valve | Stainless Steel Solenoid Valve | Plastic Solenoid Valve |
