2/2 Way NC 1-1/4" Inch Direct Acting AC220V Brass Body Water Treatment UW-35 Uni-D Type 2W350-35

2/2 Way NC 1-1/4'' Inch Direct-acting AC220V Brass Body Water Treatment UW-35 Uni-D Type 2W350-35

The valve below is UW-35 Uni-D Type Solenoid Valve 2W350-35.2/2 Way Normal Close Type Operated Solenoid Valve for water, gas, air, which viscosity fluids (< 20 cst). Able to be operated directly under low pressure. Solenoid valves consist of a coil, plunger and sleeve assembly. A plunger opens or closes the orifice by raising or lowering within a sleeve tube by energising the coil.

2W350-35

2W: Two Position Two Way Direct Drive Type Solenoid Valve

350: Aperture of Flow Rate is 35 mm

35: G1-1/4'' Inch

2/2 Way Normal Close Solenoid Valve 2W350-35 Technical Data:

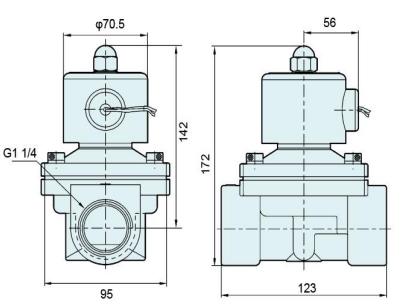

Overall Dimension Drawing of G1-1/4'' Inch 2W350-35 Brass Body:

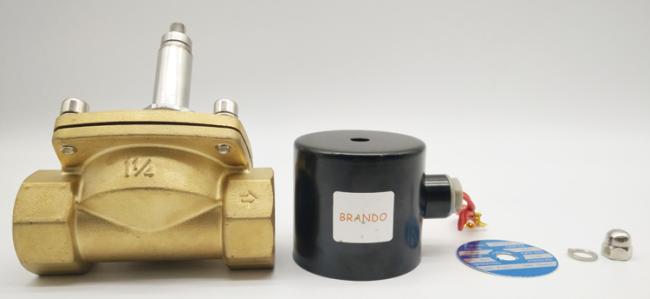

Disassembly diagram of 2W350-35 Solenoid Valve NC Direct Drive:

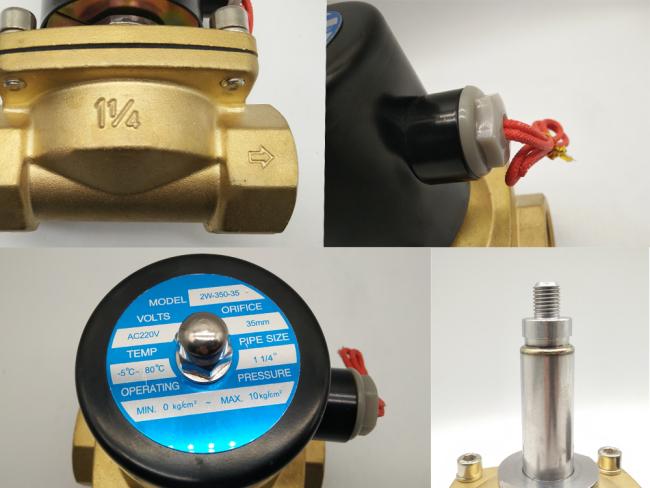

Details of 24VDC/220VAC 2W350-35 solenoid water valve:

More Details of  UW-35 Uni-D Type Water Treatment Solenoid:

How Normal Close 2W Series Solenoid Valve Works:

Solenoid valves consist of a coil, plunger and sleeve assembly.Solenoid valve function involves either opening or closing an orifice in a valve body, which either allows or prevents flow through the valve. A plunger opens or closes the orifice by raising or lowering within a sleeve tube by energising the coil.
In normally closed valves, a plunger return spring holds the plunger against the orifice and prevents flow. Once the solenoid coil is energised, the resultant magnetic field raises the plunger, enabling flow.

2W series solenoid valve application:

Used in medical machinery, solar energy, cleaning equipment, food machinery, burners, welding and cutting, fire safety, environmental water treatment, machinery manufacturing and other industries.2W series solenoid valve for  liquid, water, gas, hot water, oil, gas, etc.

The role of the solenoid valve is to use a moving iron core to open or close the valve, allowing the liquid flow or sealing, no leakage. This is a very important process in fluid and gas control automation, and different types of solenoid valves perform the same job in different ways.

Why Choose Us:

1.Geographical advantage.

NINGBO BRANDO HARDWARE co., LTD is a professional manufacturer for solenoidvalve and solenoid valve parts in China, located in China's main sea port city NINGBO.Export port: Ningbo ,Shanghai, Guangzhou ,etc.

2.Profession.

Established for decades years, focus on solenoid valve and it's parts for water industry,got good praise from customers mostly from Europe, USA, Mid-east, Southeast Asia,etc.

3.High quality.

BRANDO company control quality from source, including raw material, first kitmachining, mid-production, and do inspection by 100% pieces before package,because we believe only with good quality and good service can be able to getsatisfaction from clients and markets.

4.All kinds of valve and seals material to meet custom requirement.

If you have your own design or new product to develop, please show us your drawing orsample, we can produce accordingly. Welcome your contact with any requirement

Welcome to your inquiry!
