Sub Base Brass Solenoid Valve 6013 A 1.5 2.0 2.5 3.0 4.0 NBR EPDM FKM FLNSCH
Sub Base Brass Solenoid Valve 6013 A 1.5 2.0 2.5 3.0 4.0 NBR EPDM FKM FLNSCH
6013 is a direct-acting plunger solenoid valve. Various seal material combinations are available depending on the application. It is a cost-effective valve with a universal application for neutral and clean liquids, gases and vapors. A specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy.
Product Video of 6013 FLNSCH Brass Solenoid Valve:
Technical Data of 6013 FLNSCH Solenoid Valve:
|
Model
|
Port Size
(Inch)
|
Orifice Size
(mm)
|
Kv
|
Pressure Range (bar)
|
Medium Temperature (℃)
|
Dimension
|
||
|
A
|
F
|
K
|
||||||
|
6013
|
1/8''
|
1.5
|
0.05
|
0 to 40
|
NBR: -10 to +80
EPDM: -30 to +120 FKM: -30 to +150 |
32
|
32
|
66
|
|
2
|
0.12
|
0 to 25
|
||||||
|
2.5
|
0.16
|
0 to 16
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
|
1/4''
|
1.5
|
0.05
|
0 to 40
|
46
|
32
|
70
|
||
|
2
|
0.12
|
0 to 25
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
|
4
|
0.3
|
0 to 4
|
||||||
|
5
|
0.35
|
0 to 2
|
||||||
|
6
|
0.55
|
0 to 1.5
|
||||||
|

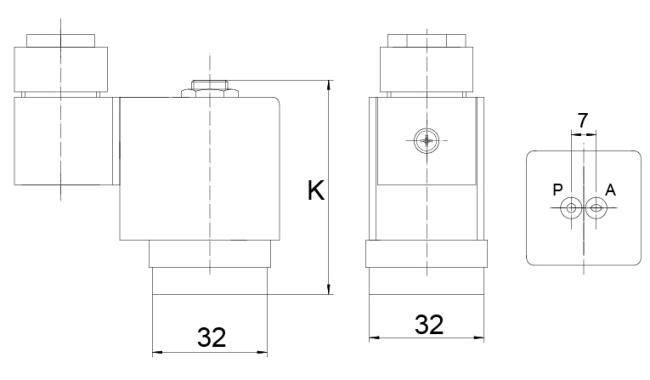

Sub-base
(SFB)
|
1.5
|
0.1
|
0 to 40
|
32
|
32
|
66/68
|
||
|
2
|
0.15
|
0 to 25
|
||||||
|
3
|
0.23
|
0 to 10
|
||||||
