K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51

K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A07 SCG353A050 SCG353A051

The solenoid valve assembly may include a solenoid driver adapted to generate a first voltage level for initiating movement of the magnetized armature, and a second voltage level for maintaining the magnetized armature in an energized position. The solenoid valve assembly may have a housing, a solenoid, and a magnetized cylindrical armature that is couplingly coupled to the solenoid and located within a hollow center of the solenoid. The armature may have a spring fixed to one end of the armature and one end of the solenoid, wherein the spring and the armature can be linear in the fluid cavity of the valve housing and in the cylindrical plunger guide of the solenoid motion. Linear motion is controlled by the magnetic field of the solenoid and spring so that the magnetized armature can abut the orifice fluid outlet of the orifice plate to prevent fluid from flowing through it.

YouTube video of K0950 ASCO Type Solenoid Valve Pilot Repair Kit:

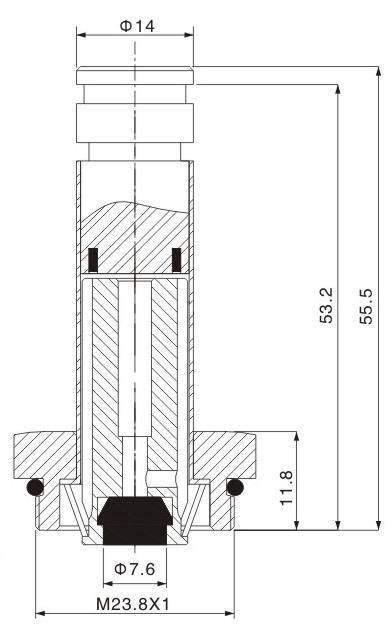

Main dimension of K0950 ASCO Type Pulse Valve Repair Kit:

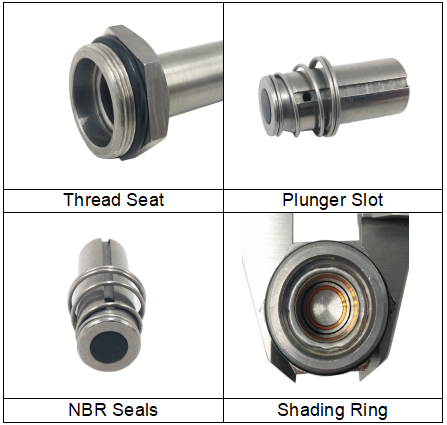

Details display of K0950 ASCO Type Solenoid Valve Rebuild Kit:

Technical parameters of ASCO Type Diaphragm Valve Solenoid Kit:

ASCO Type diaphragm valve repair kits and coils comparison table:

Tips: The valves mentioned, related diaphragms and solenoid coils are all supplied.

Factory production of Solenoid Valve Armature Plunger:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
