K4504 M2187 Goyen Type Buna Diaphragm Repair Kit For 1 1/2" CA/RCA45T CA/RCA45DD CA/RCA45FS Pulse Valve

K4504 M2187 Goyen Type Buna Diaphragm Repair Kit

This is K4504 M2187 buna diaphragm kit, used in Goyen 1 1/2" CA45T, RCA45T, CA45DD, RCA45DD, CA45FS, RCA45FS diaphragm valves. One set of K4504 M2187 diaphragm kit includes one buna seat buna diaphragm and one small stainless steel spring. The diaphragm is the key component in diaphragm pulse jet valves. It is one of the fittings for the normal operation of the valve body and the "switch" of the injection air circuit of the dust cleaning system of the pulse bag filter. It can easily ensure complete synchronization with other control components to control the injection of pulsed compressed air. So the tightness and softness of the diaphragm play a decisive role in the blowing effect of the pulse valve.

YouTube video of K4504 M2187 Goyen Type Buna Diaphragm Kit:

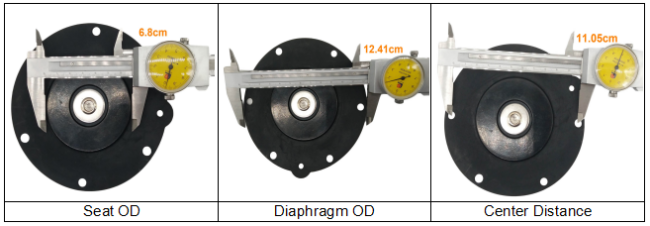

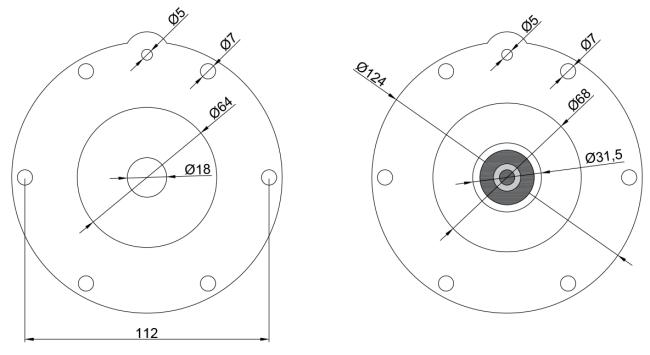

Main dimension of Goyen Type K4504 M2187 Diaphragm Repair Kits:


Details display of K4504 CA/RCA45 Diaphragm Valve Repair Kit:


Available Models of Goyen Type Buna/Buna Diaphragm Repair Kits:

* Single Valve
** Older version with Single Valve
*** Double Valve
1B 1 Bleed Hole
3B 3 Bleed Holes
LP Low Pressure

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
