24VDC 220VAC Green Solenoid Coil For New SBFEC DMF Series Diaphragm Pulse Valve

This green solenoid coil is mounted on SBFEC DMF series dust collector diaphragm pulse valves, such like DMF-Z, DMF-Y, DMF-ZM, DMF-T, DMF-ZF. In addition to solenoid coil, the diahragm pulse valves mentioned, related diaphragm repair kits and armature assembly are all supply. If you have any demands, pls feel free to contact us, thanks.

YouTube video of Green Solenoid Coil For New SBFEC Pulse Valves:

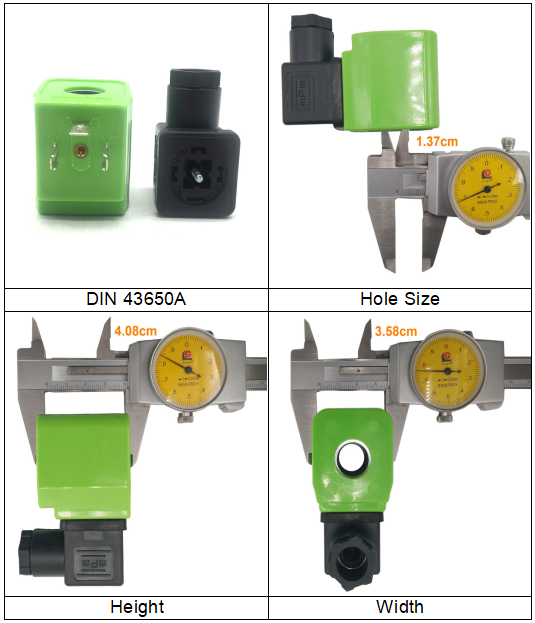

Main dimension of  New DMF Series Pulse Valve Solenoid Coil:

Details of Green Solenoid Valve Coil For DMF Diaphragm Valve:

Technical parameters of SBFEC Type Pulse Valve Solenoid Coils:

Many Stocks of DMF Pulse Valve Repair Kit Solenoid Coils:

Brando Factory Production of Solenoid Valve Coils:

Product Characteristic:
1. Using high quality wire which has UL approved;

2. Using high quality permeablity magnetic material which contain low carbon;

3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.

4. Insulation class can be B, F, H, N, C;

5. Protection class can be IP65, IP67 & IP69K;

6. We also offer special coils like ex-proof coils, water proof coils and so on.

7. If you have special requirement, pls feel free to contact us.

The working principle of pulse valve with solenoid coil:
When the pulse valve is not energized, the gas passes through the constant pressure pipe of the upper and lower casings and The orifice enters the decompression chamber. Since the valve core blocks the pressure relief hole under the action of the spring, the gas will not be discharged, so that the pressure of the decompression chamber and the air bag are consistent, and under the action of the spring, the diaphragm will be blown. Blocked, the gas will not rush out.

When the pulse valve is energized, the valve core is lifted up by the electromagnetic force, the pressure relief hole is opened, and the gas is ejected. Due to the action of the constant pressure pipe orifice, the outflow speed of the pressure relief hole is greater than the constant pressure pipe of the decompression chamber. The inflow rate of the gas causes the pressure of the air bag to be lower than the pressure of the lower air chamber, and the gas of the air bag pushes up the diaphragm, opens the air injection port, and performs gas injection.
