AC220V DC24V SBFEC Replacement Solenoid Valve Coil For Old DMF Series Diaphragm Pulse Valves

Brando has more than 10 years experience in manufacturing and exporting solenoid coils. The solenoid coil shown is used for old version SBFEC diaphragm pulse valves. Besides solenoid coil, the diaphragm valves mentioned, related diaphragm repair kits and armature assembly are all supply.

1. Hole Size: 13.5mm
2. Height: 41.2mm
3. Width: 36.0mm
4. Supply Voltages: AC220V, DC24V
5. Power: 25VA, 20W
6. Connector: DIN43650A
7. Protection Grade: IP65
8. Insulation Class: F, H
9. Enameled wire material: Copper

YouTube video of Green Solenoid Coil For Old SBFEC Pulse Valves:

Main dimension of  Old DMF Series Pulse Valve Solenoid Coil:

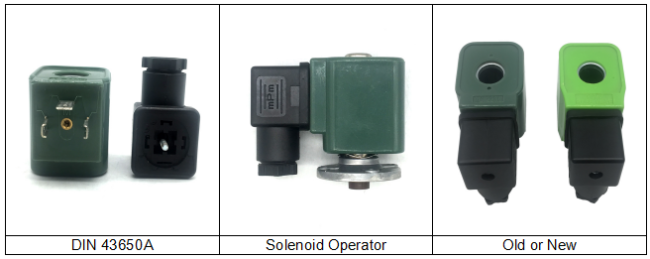

Details of Green Solenoid Valve Coil For DMF Diaphragm Valve:

Technical parameters of SBFEC Type Pulse Valve Solenoid Coils:

Brando Factory Production of Solenoid Valve Coils:

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on;
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on;
7. If you have special requirement, pls feel free to contact us.

Installation cautions of dust collector pulse valve:

1. Before use, check if the components are damaged during transportation.
2. Before installation, ventilate the debris in the gas supply pipe. Pay attention to the gas flow direction and the correct connection.
3. All O-rings should be coated with a suitable lubricant during installation.
4. There are three pins on the electromagnetic pulse valve coil, and they are equipped with special plugs. One of them has a symbol for the grounding pin. The user can decide whether to ground or not according to the need. (In general, when the voltage is less than 36V, it can be grounded. When it is greater than 36V, it should be grounded.) The other two are coil power pins, which are connected to the terminals of the pulse blowing controller and the terminals of the valve common line. Pay attention to whether the voltage meets the requirements.
