AirTAC Type 4V110-06 5/2 Way Pneumatic Solenoid Valve Aluminum Body For Face Non Woven Making Machine

AirTAC Type 4V110-06 5/2 Way Pneumatic Solenoid Valve Aluminum Body For Face Non Woven Making Machine

4V110-06 Pneumatic air control valve high strength aluminum alloy botton cover. It has 1/8'' Inlet and outlet port size, Normally Closed. 4V110-06 pneumatic solenoid valve which A B R P S is five air pipe connections. Normally A and B are connected to two interfaces of the double acting cylider; P is connected to the air suppuly; Rand S can be Disconnected, and the silencer can also be connected. The silencer is a porous object. when the airflow passes through it, the sound is small, which is used to reduce the noise of the pneumatic system.

5/2 Way single solenoid for automation (such as auto medical mask machine). Automatic machine make Industrial production faster and easiler, also decrese Labor costs.

Youtube Video of 4V110-06 Pneumatic Solenoid Valve:

Technical Data:

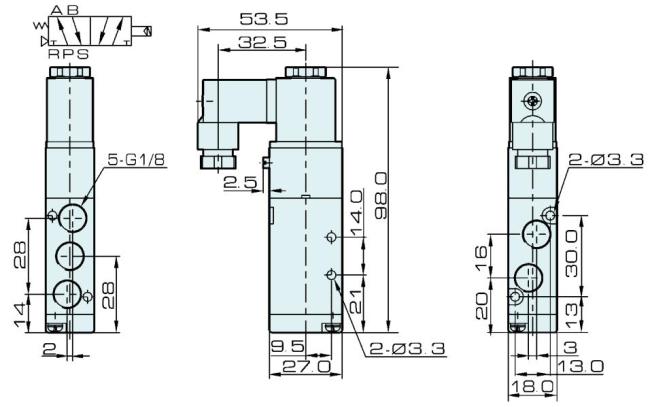

Dimension of 4V100 Series Internal Pilot Operated Pneumatic Valve:

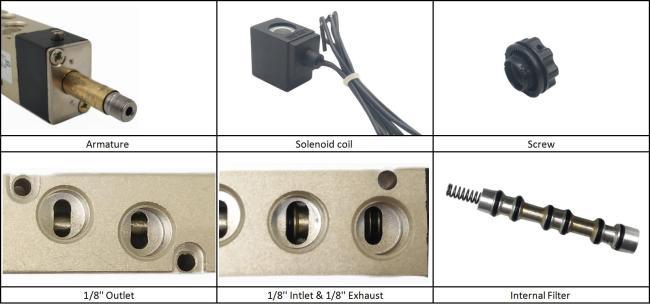

Details About 5/2 Way AirTAC Type Pneumatic Solenoid Air Valve:

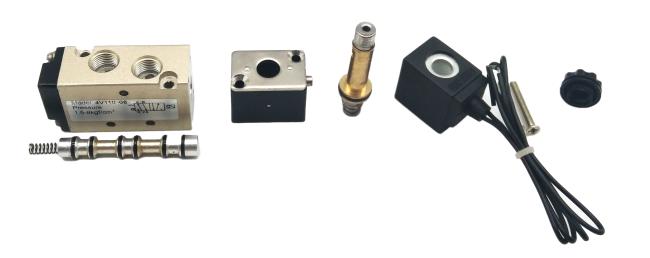

Deconstruction of 4v110-06 pneumatic solenoid valve:

4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;
