1261253 Diaphragm For Norgren 3/4" 8296300 1 1/2" 8296600 2" 8296700 2 1/2" 8296800 Pulse Valve

1261253 Diaphragm For Norgren 3/4'' 8296300 1 1/2'' 8296600 2'' 8296700 2 1/2'' 8296800 Pulse Valve

The TPE 1261253 diaphragm is the heart of the Norgren 3/4'' 8296300 1 1/2'' 8296600 2'' 8296700 2 1/2'' 8296800 pulse valve. The characteristics of Norgren pulse valve compare favourably with other products on the market are the result of an innovative housing design based on advanced air technology and the application of TPE diaphragm technology. The TPE diaphragm is the key component in diaphragm pulse jet valves designed to provide short pressure decay times and high kv-values. Service life is 4-5 times longer than that of comparable, conven-tional fabric diaphragms.

YouTube video of 1261253 Diaphragm Repair Kit For Norgren Pulse Valve:

Main dimension of 1261253 Norgren Type Diaphragm Valve Repair Kit:

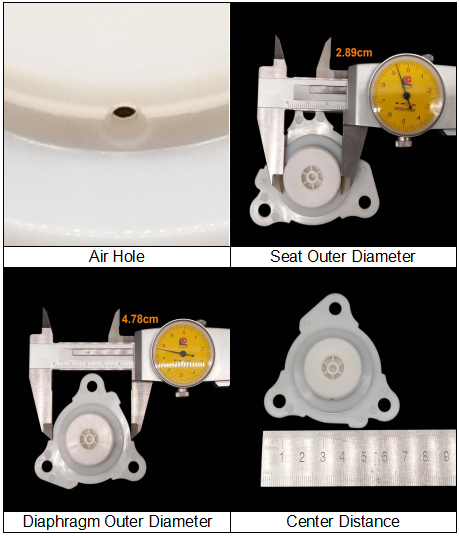

Details of Diaphragm For Norgren 8296300 8296600 8296700 8296800:

Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.
