1268274 2'' 8296700 2 1/2'' 8296800 Norgren Type Pulse Valve Repair Kit Diaphragm

This is 1268274 diaphragm repair kit for Norgren 2'' 8296700 and 2.5'' 8296800 pulse valves, which is made of TPE, and one set of 1268274 diaphragm kit includes 1 main diaphragm and 1 secondary diaphragm. TPE (Thermoplastic elastomer) diaphragms are manufactured by injection molding. As a result of their dimensional stability and tensile strength, TPE diaphragms do not need fabric reinforcement. Exhibiting flex life, abrasion resistance, temperature range and durability, it is widely used in the chemical process, food, pharmaceutical and wastewater industries.

YouTube video of 1268274 Diaphragm Repair Kit For Norgren Pulse Valve:

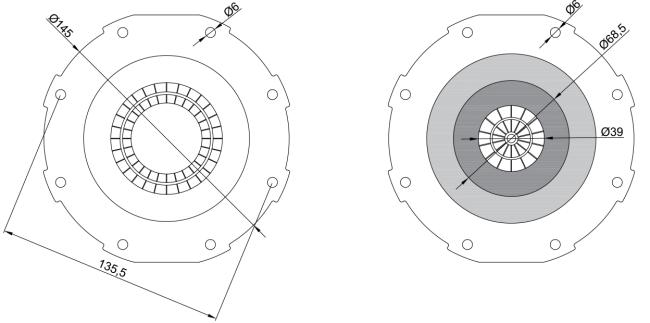

Main dimension of 1268274 Norgren Type Diaphragm Valve Repair Kit:

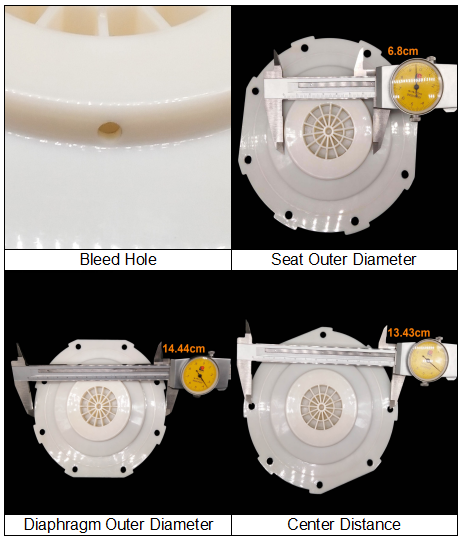

Details of Pulse Valve Diaphragm For Norgren 2'' 8296700 2 1/2'' 8296800:

Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
