TPE Viton Diaphragm Repair Kits For 3/4" AE1818B AE2818B Solenoid Valve

TPE Viton Diaphragm Repair Kits For 3/4" AE1818B AE2818B Solenoid Valve

he electromagnetic pulse valve is the compressed air "switch" of the dust cleaning and blowing system of the pulse bag filter. Under the control of the output signal of the pulse injection controller, the filter bags are injected and cleaned one by one to keep the resistance of the precipitator within the set range, so as to ensure the processing capacity and dust collection efficiency of the precipitator.

The electromagnetic pulse valve controls the opening and closing of the unloading hole of the valve body according to the electrical signal. When the valve body is unloaded, the pressure gas in the cavity behind the valve is discharged. The pressure gas in the cavity in front of the valve is throttled by the negative pressure hole on the diaphragm, the diaphragm is lifted, and the pulse valve is injected.

When the valve body stops unloading, the pressure gas quickly fills the rear chamber of the valve through the damping hole. Because of the difference of the stress area on both sides of the diaphragm on the valve body, the gas force in the rear chamber of the valve is large, the diaphragm can reliably close the valve's nozzle, and the pulse valve stops blowing.

The electric signal is timed in millisecond, and the moment when the pulse valve is opened, a strong impact air flow will be generated, so as to realize instant injection.

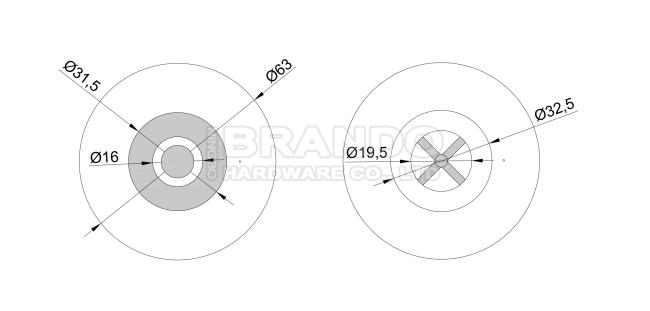

Main dimension of Norgren Type Pulse Valve Diaphragm Kit:

Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:

YouTube video of Norgren Diaphragm Repair Kit For Norgren Pulse Valve:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
