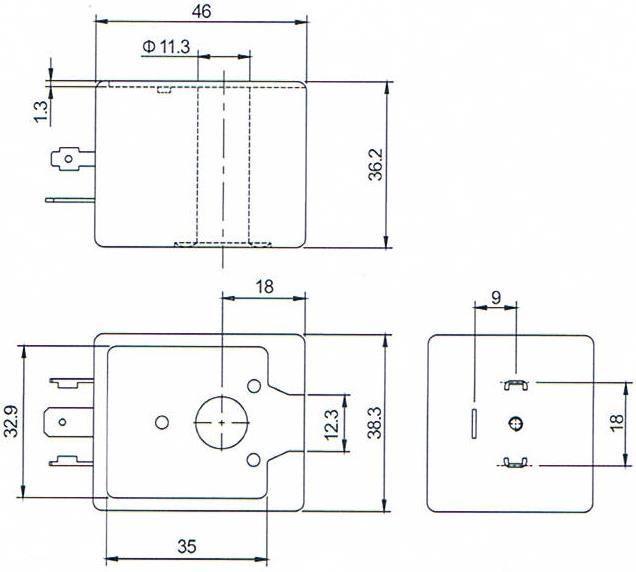

Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:

AC/DC Solenoid Comparison:

AC service
a) High inrush and low holding current
b) High pull force
c) Sensitive to dirt
d) The coils have less windings (copper)
than DC coils
e) Power consumption and pull force not sensitive to temperatures.

DC Service
a) Inrush current equals to holding
current
b) Power consumption and pull force
depend on temperature
c) Solenoid operates quietly
d) Not sensitive to dirt
e) The coils have more windings (copper) than AC coils

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
