5543 CEME Type 2/2 Way NC Brass Solenoid Valve 1/8'' Inlet M8 Outlet 24V 220V

5543 CEME Type 2/2 Way NC Brass Solenoid Valve 1/8'' Inlet M8 Outlet 24V 220V

Product Features:

1. Port Size: Inlet: 1/8''; Outlet: M8x1
2. Orifice Size: 1mm to 3mm
3. Body Material: Brass
4. Seal Material: NBR, EPDM, FKM
5. Working Medium: Water, Air, Gas, Oil, Steam, etc
6. Working Medium Temperature Range: NBR: -5 to +120 ºC, EPDM: -30 ℃ to +120℃, FKM: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 10 bar
8. Voltage: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)

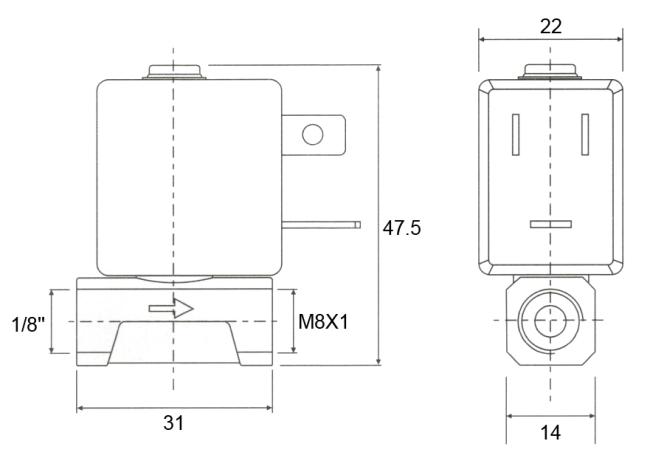

Dimension and Data of Solenoid Valve:

BRANDO Solenoid Valve Production Video:

More Solenoid Valves for you to choose:

Brass Solenoid Valve	Stainless Steel Solenoid Valve	Plastic Solenoid Valve	Aluminum Alloy Solenoid Valve
