SBFEC Type Dust Collector Pulse Jet Valve Diaphragm Repair Kit For 3/4" DMF-Z-20
SBFEC Type Dust Collector Pulse Jet Valve Diaphragm Repair Kit For 3/4'' DMF-Z-20
The following is diaphragm repair kit for SBFEC 3/4'' DMF-ZL-B MF-ZL-B diaphragm valves. At Ningbo Brando Hardware Co., LTd, we pride ourselves on providing responsive customer service. This does not only apply to our solenoid valves, but also any accessories or replacement parts that may be required.
We offer competitive accessories and replacement parts for dust collectors as following:
1. Timer Board
2. Valves and Solenoids
3. Repair Kits for Valves
By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts.
Available Models of BFEC DMF/MF Series Diaphragm Repair Kit:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|

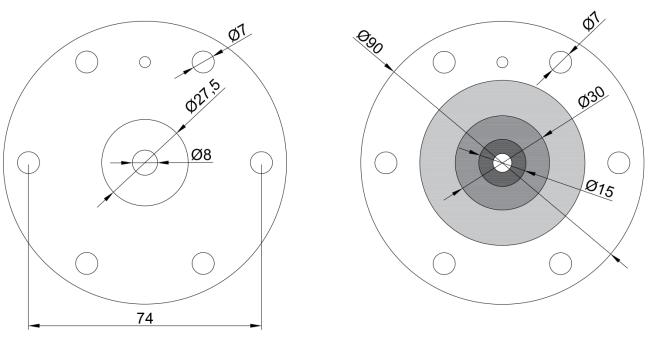

Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
