EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC

This is a EVI 5M/13 AMISCO type solenoid valve coil, coil inner hole diameter is 13mm, coil height is 40mm, coil width is 29.5mm, coil insulation class is H, coil connection type is DIN43650A, supply 220VAC, 110VAC, 24VAC, 24VDC, 12VDC voltages, supply 13VA, 10W power, other voltages and power can be customized.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of EVI 5M/13 solenoid valve coil:

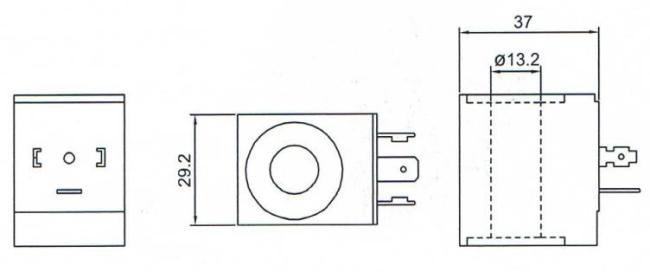

Main dimension of EVI 5M/13 solenoid valve coil:

Brando factory production of solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
