NBR Seal Stainless Steel Magnetic Plunger Solenoid Valve Armature

NBR Seal Stainless Steel Magnetic Plunger Solenoid Valve Armature

Features of Solenoid Valve Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive;

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer;

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance;

4. Sealing materials can be selected according to your different requirements;

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection.

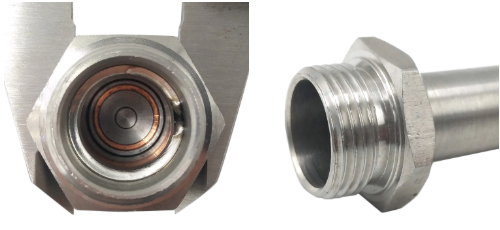

Details of Solenoid Valve Armature Assembly:

     Copper Shading Ring                 M20Thread Seat

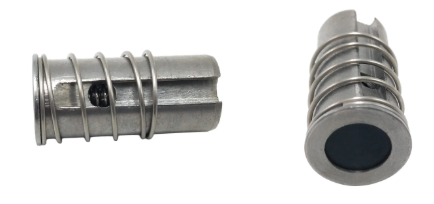

       Magnetic Plunger                          NBR Seal

Technical data of Solenoid Valve Armature Assembly:

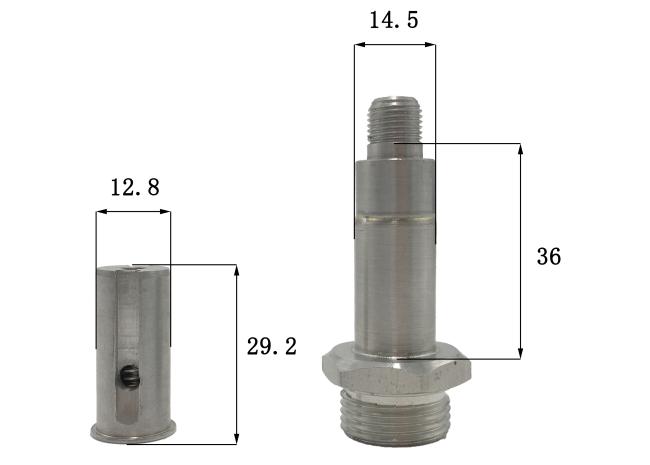

Main dimension of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Solenoid Valve Armature Assembly Categories:

The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.

1. Port / positions: 2/2 way or 3/2 way. (The first figure shows the number of ports, the second shows the number of positions)

2. Function: Normally closed (NC), or normally open (NO)

3. Connection: Thread or flange

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
