2/2 Way Normally Closed Water Solenoid Valve Stem Plunger Repair Kit

A solenoid valve is made up of two basic functional units.They are

(1) The solenoid, an electro-magnet with a plunger.
(2) A valve containing an orifice in which a disc or plug is positioned to stop or allow flow.

The solenoid valve is opened or closed by movement of the magnetic plunger,or core, which is drawn into the solenoid when the coil is energised (an electric current is passed through it). The solenoid valve opens when energized allowing instrument air to pass through, the valve closes when the solenoid is de-energized preventing instrument air from passing through but vented to the atmosphere.

Solenoid valves have a solenoid mounted directly on the valve body with the solenoid core attached to the valve stem.The core is enclosed and free to move in a permanently sealed tube inside the solenoid coil.This construction provides a compact, leak tight assembly.

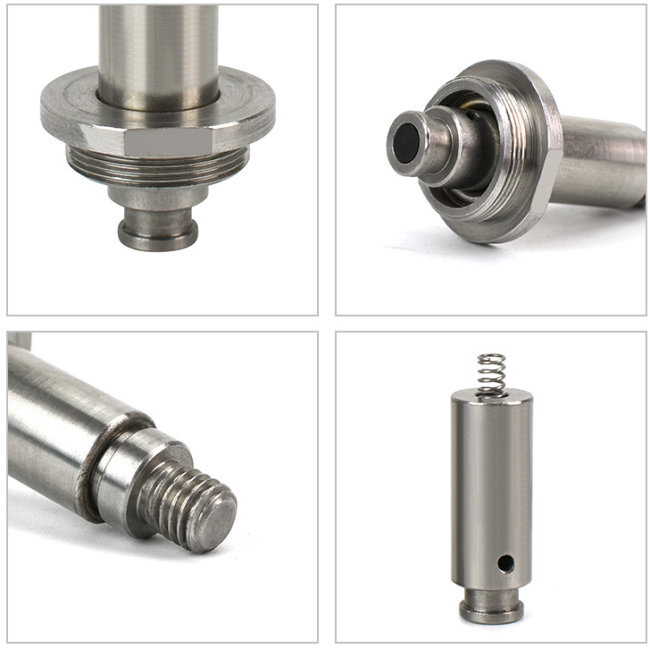

Detailed Images of solenoid valve stem:

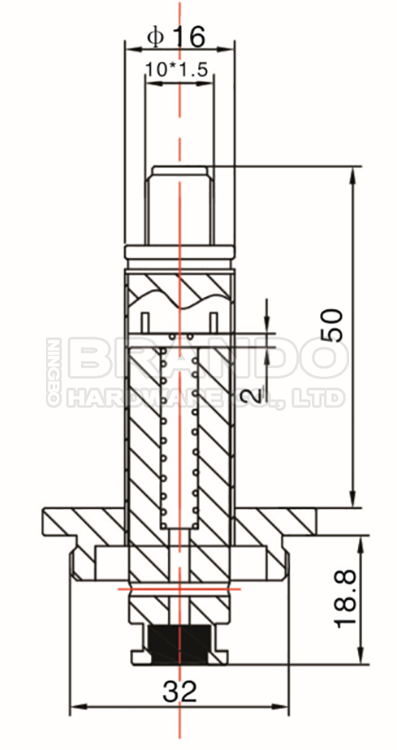

Dimension & Data of solenoid valve stem:

Dimension	Model	BAPC216038501
	Function	2/2 Way, Normally Closed
	Seat Connection	M32 Thread
	Core Tube Material	Stainless Steel 304
	Seal Material	NBR
	Voltage	All range of AC and DC available
	Customize Service	Provided, Pls show us sample or drawing

Brando Solenoid Valve Stem Production Video:

Solenoid Valve Stem Categories:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 30mm.

*According to tube material: Brass, Stainless Steel

*According to valve application: Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration, dust collector and other automation control industries.

Features of Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection
