Old Version DMF-Z-50S DMF-T-50S DMF-ZM-50S 2'' Inch Nitrile Diaphragm Repair Kit

Old Version DMF-Z-50S DMF-T-50S DMF-ZM-50S 2'' Inch Nitrile Diaphragm Repair Kit

The diaphragm of DMF pulse valve is the "switch" of the blowing air circuit of the dust cleaning system of the pulse bag filter, and the diaphragm in the valve body is the key to its normal operation. The diaphragm in the valve body is controlled by the pulse controller to vibrate into the pulse "impulse" on the street to blow the dust. The area controlled by the diaphragm at the back is larger than that controlled by the front, and the air pressure force is large. Place the diaphragm in a critical position. The electric signal is input by the pulse controller, which makes the electromagnetic pilot head attractive and transportable, and opens the unloading hole. The pressure gas controlled by the diaphragm is discharged rapidly. The pressure gas controlled in front of the diaphragm lifts the diaphragm, opens the channel of the electromagnetic pulse valve and blows into the street, the electrical signal disappears, the spring of the electromagnetic pilot head causes the moving column to immediately reset and close the unloading hole, the gas pressure and spring force controlled in rear of the diaphragm causes the diaphragm to close the channel, the electromagnetic pulse valve stops blowing, the resistance hole on the diaphragm of the pulse valve, when the moving column of the pilot head is lifted and the gas pressure is unloaded When the unloading is closed, the pressure gas will be filled into the rear chamber quickly, the diaphragm will close the channel and stop the injection.

BRANDO has 4800 square meter workshops and around 50 employees, developed about 10 years from year 2008 by focusing on products quality, design, service, now with good reputation from all over the world and our annual output value increasing yearly by yearly, moreover, more than 90% of annual output value is from exporting brought from products high quality and best customer service. We highly believe to run the company and brand well should keep faith of BEST QUALITY, BEST ATTITUDE, and BEST CUSTOMER SERVICE.

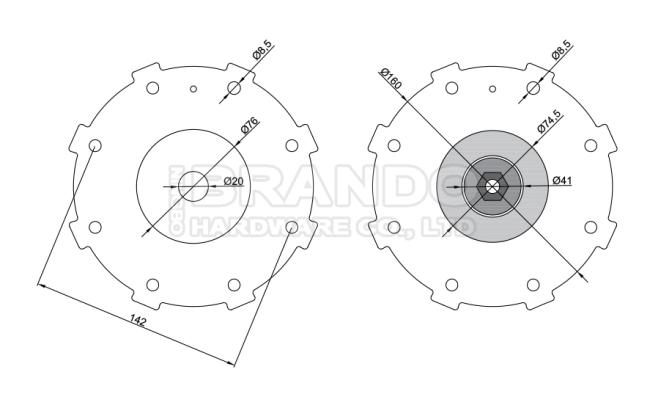

Main dimension of BFEC Replacement Diaphragm Repair Kits:

Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Application Examples:

YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
