K7600 K7604 K7610 3'' Inch CA/RCA76 Pulse Jet Valve Diaphragm Repair Kit


We can supply diaphragm valve repair kits for many size or configuration Goyen type valve. All kits are same as Goyen type spare parts and are all produced by our own factory. Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). Popular valves and repair kits are in stock and available to ship in short times. We can offer unbeatable prices on your Goyen type spare parts, including diaphragm valves, solenoids and control boards. The K7600 buna RCA76 diaphragm kits are shown below. If you don't see the kit you need, pls feel free to us.

YouTube video of K7600 Goyen Type Buna RCA76 Diaphragm Kit:

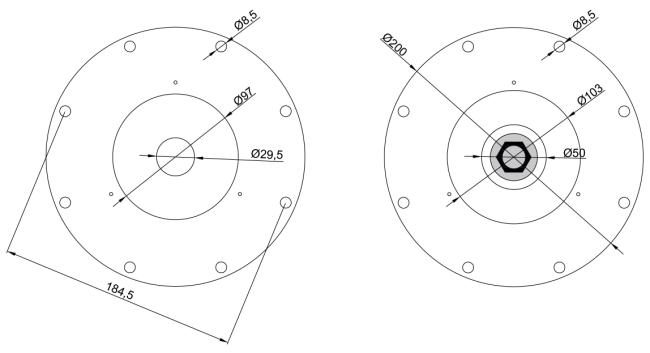

Main dimension of Goyen Type K7600 Diaphragm Repair Kits:

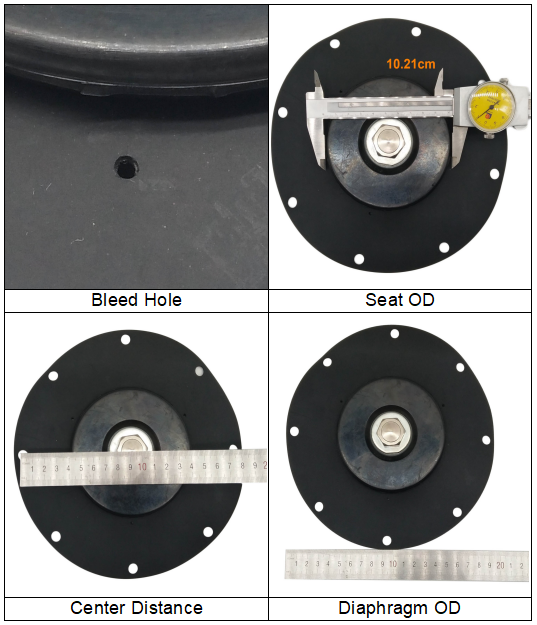

Details display of Goyen Type CA/RCA76 Diaphragm Valve Repair Kit:


Available Models of Goyen Type Buna/Buna Diaphragm Repair Kits:

* Single Valve
** Older version with Single Valve
*** Double Valve
1B 1 Bleed Hole
3B 3 Bleed Holes
LP Low Pressure

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.
