3/2 Way NC Stainless Steel N16382 Auto Drain Solenoid Valve Stem

Automatic condensate drains are essential components in every compressed air treatment system, purging liquid from receiver tanks, water separators, coalescing filters, and air dryers. Auto drains are small and relatively inexpensive, making them easy to overlook, and too often plant operators underestimate the consequences of a drain failure.A simple drain mishap can easily cause thousands of dollars in equipment damage and product spoilage. I’ve seen it happen too many times to count.

Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando Solenoid plungers are available in numerous designs and have been tested to meet rigorous performance requirements for solenoid valves. These solenoid plungers can be utilized in various applications including, air and fluid power applications, heating and cooling system regulation units, industrial, and automotive applications.

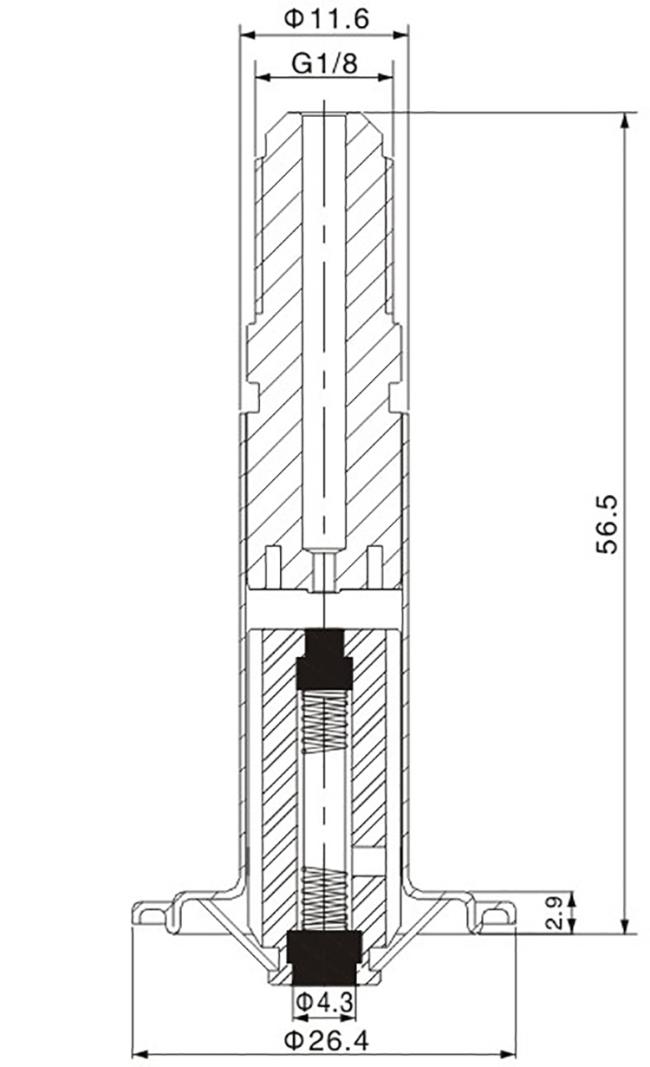

Dimension of BAPC31164003 Armature Assembly:

Technical Data:

Material of Each Part We Use:

1: Fixed nucleus: High performance magnetic stainless steel iron, almost similar as 430FR, with 99.9% silver shading ring

2: Nonmagnetic tube: 304 Stainless steel/Brass

3: Mobile plunger: High performance magnetic stainless steel iron, almost similar as 430FR

4: O-ring: Viton

5: Seal: Viton, PTFE

6: Spring: SUS304

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
