Henny Penny Fryer Solenoid Valve MP-C-011 Coil Armature Assembly

Henny Penny Fryer Solenoid Valve MP-C-011 Coil Armature Assembly

* Suitable for various models of commercial catering appliances including:

* HENNY PENNY pressure fryer 500, 600, CFA-500, CFA-600, Computron 7000, Henny Penny, Henny Penny CFA Warehouse , PFE-500, PFE-500-CFA, PFE-561, PFE-581, PFE-590, PFE-591, PFE-592, PFE-600, PFG-500, PFG-561, PFG-600, PFG-680KFC, PFG-690, PFG-691, PFG690

* Kit Contains:

1 x 17108 bonnet
1 x 17111 core disc assy
1 x 17110 core spring
1 x 17109 retainer cap

* Also suitable replacement for the following OEM part numbers: ASCO 162188

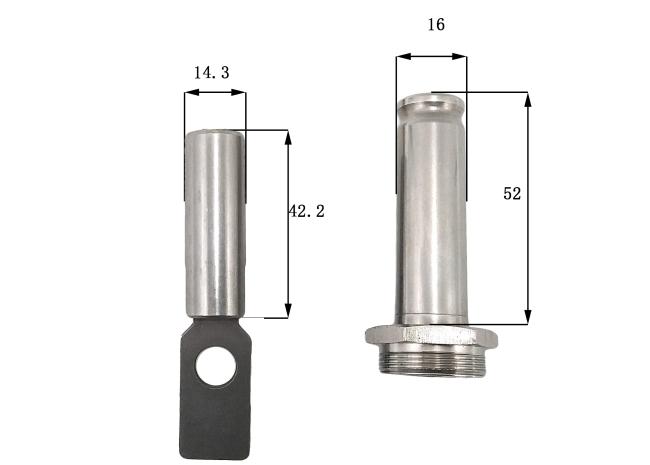

Main dimension of Solenoid Valve Armature Assembly:

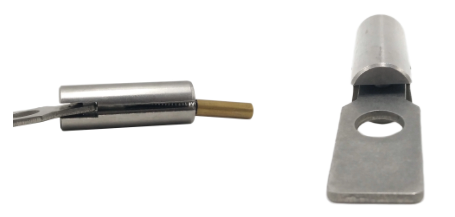

Details of Solenoid Valve Armature Assembly:

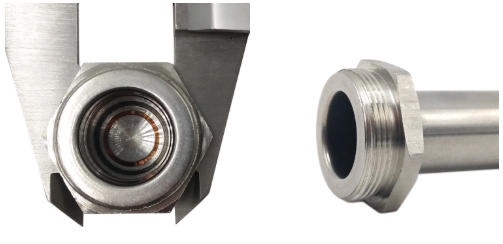

    Copper Shading Ring                    Thread Seat

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

Can the utility type or production date of my equipment affect whether or not this part fits?
Sometimes, but not always, factors like the voltage, fuel type, and serial number may determine whether or not a particular part will fit your particular unit. We do our best to provide the most up to date information possible on our site but we cannot guarantee that this will clarify every possible scenario. If you need additional confirmation that this part is the correct one for your unit, we recommend consulting product literature for your equipment to identify the correct part.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
