K23D Pilot Solenoid Valve Coil K23D-3 K23D-3T 24VDC 220VAC 12W 22VA
K23D Pilot Solenoid Valve Coil K23D-3 K23D-3T 24VDC 220VAC 12W 22VA
This solenoid coil is used for K23D-3, K23D-3T pilot pneumatic solenoid valve. Solenoid Coil Standard Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Solenoid Coil Standard Power: 12W, 22VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

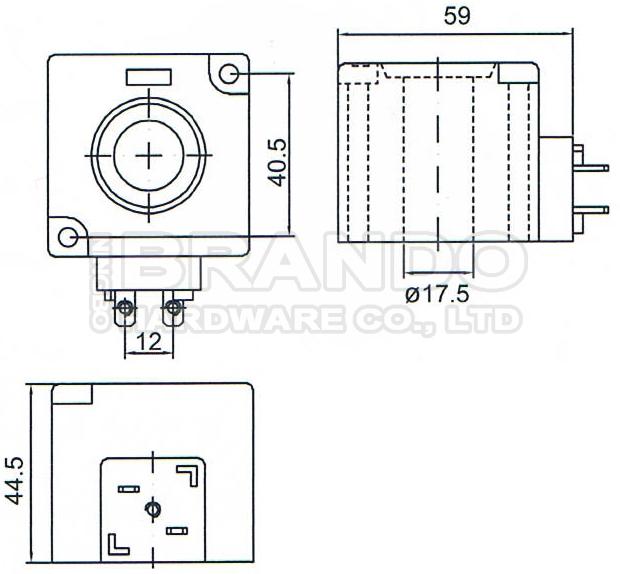

Dimension & Data of Solenoid Coil:
|
BRANDO Model
|
BB17544509
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|
Power
|
22VA, 12W |
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
B, F, H
|
|
Connector
|
DIN4.8
|
