PU220A-04 SHAKO Type Water Air Brass Solenoid Valve 1/2'' 220V 110V 24V 12V
PU220A-04 SHAKO Type Water Air Brass Solenoid Valve 1/2'' 220V 110V 24V 12V
This is PU220A-04 solenoid valve, 1/2'' port, 13mm orifice, 0 to 10 bar, direct lifting diaphragm, 2 way normally closed, brass body, NBR standard diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.
Product Features:
1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Pressure: 0 to 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 13mm, 20mm, 25mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Direct Lifting Diaphragm
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model Number
|
PU220A-03
|
PU220A-04
|
PU220A-06
|
PU220A-08
|
|
Orifice Size
|
13mm
|
13mm
|
20mm
|
25mm
|
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1''
|
|
Effective Area
|
76mm²
|
76mm²
|
162mm²
|
220mm²
|
|
Cv Value
|
4
|
4
|
8.6
|
11
|
|
Medium
|
Water, Air, Light oil, Gas, Liquid, etc
|
|||
|
Operation
|
Direct Lifting Diaphragm
|
|||
|
Function
|
2 Way Normally Closed
|
|||
|
Body Material
|
Brass
|
|||
|
Diaphragm Material
|
NBR (Standard), EPDM, FKM (Optional)
|
|||
|
Working Pressure
|
0 to 10 bar
|
|||
|
Working Temperature
|
NBR: -5 to +80ºC
EPDM: -5 to +120ºC
FKM: -10 to +150ºC
|
|||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||

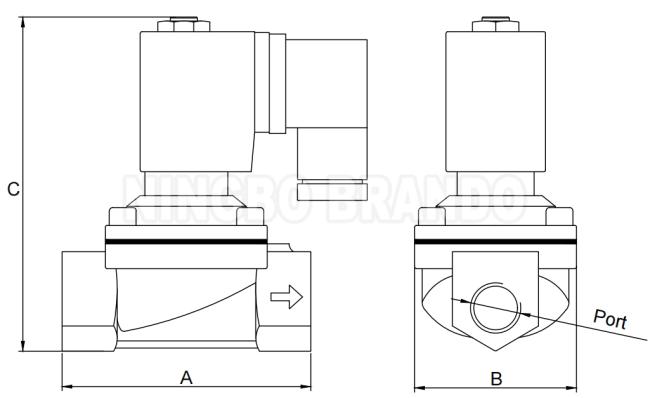

Main Dimension:
|
Model Number
|
Port
|
A
|
B
|
C
|
|
PU220A-03
|
3/8''
|
67.5
|
101
|
48
|
|
PU220A-04
|
1/2''
|
67.5
|
101
|
48
|
|
PU220A-06
|
3/4''
|
75
|
107
|
58
|
|
PU220A-08
|
1''
|
96
|
121
|
70
|
Our Production:
FAQ:
Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.
Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.
Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
