CA Series Pulse Jet Valve 13mm Hole QR CY123 N282 K0300 Solenoid Coil

CA Series Pulse Jet Valve 13mm Hole QR CY123 N282 K0300 Solenoid Coil

Pulse valve refers to a diaphragm valve controlled by a pilot valve such as electromagnetic or pneumatic, which can open and close a high-pressure gas source to generate a pulse in an instant. The pulse valve is the main component of the bag dust collector, and it has been sprayed more than 1 million times. Pulse valve is a kind of valve that makes the long signal input into a pulse signal by the delay action of air flow through air resistance and gas volume.

We also have K0300 (AC220V), K0301 (AC110V), K0302 (AC24V), K0303 (DC110V), K0304 (DC48V), K0305 (DC24V), K306 (DC12V).

Hole Size:12mm
Height:41mm
Width:37.5mm
Voltage:100/120V 110V AC
Power:20Watt
Connector:DIN43650A
Insulation class:F, H
Protection class:IP64
Application:CA Dust Collector Pulse Valve

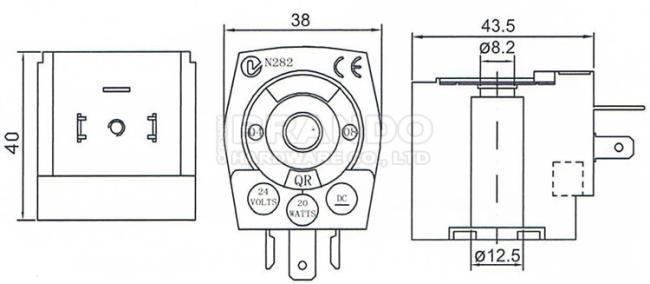

Dimension:

Technical Data:

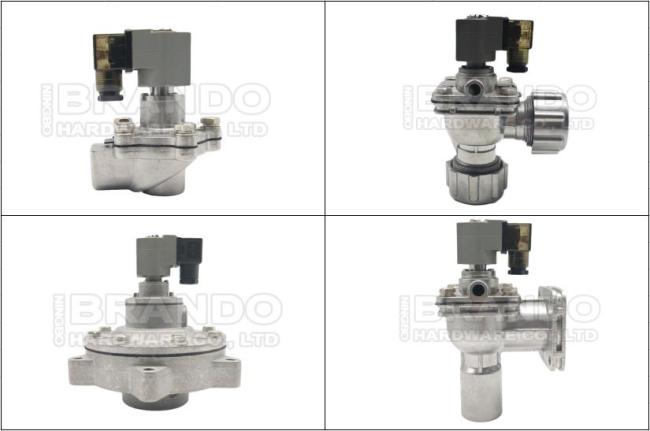

Application Example:

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
