SPU225A-04 Shako Type 1/2'' Solenoid Valve Stainless Steel 24V 110V 220V

The SPU225 series 2 way 316 stainless steel solenoid valve is a pilot assisted open/close electrically actuated valve for the ON/OFF control of fluids and gaseous media that are compatible with the materials of construction. Sometimes referred to as a servo assisted, pressure assisted or floating diaphragm valve the SPU225 valve is designed to utilise the pressure differential between inlet and outlet to control the opening or closing of the valve diaphragm.

Main Dimension of SPU225A series Solenoid Valve:

Technical Data of SPU225A series Solenoid Valve:

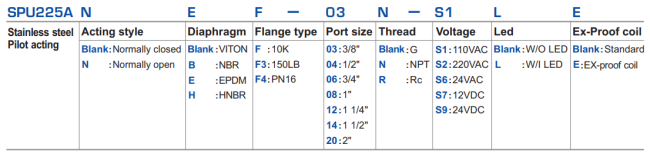

Ordering Code of SPU225A series Solenoid Valve:

Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:

PU220A Series	PU225A Series
SPU225A Series	PU225S Series

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
