PU225S-06 Shako Type 3/4'' Steam Control Solenoid Valve 24V 110V 220V

Shako type PU225S series steam solenoid valve features:

1. Port thread 3/8, 1/2, 3/4, 1" BSP, NPT or Flange (F) JIS10K, (F3) ANSI150Lb, (F4) PN16.
2. Pressure 0.5 to 10 Bar steam 185C, tested to 15 Bar.
3. Pilot acting for low starting pressure.
4. Function 2/2 way normally closed. (failsafe closed)
5. Large flow rate.
6. Strong stainless steel piston and graphite impregnated PTFE seals.
7. Quick response.
8. IP65 Class H DIN43650A 100% duty rated coil, option ATEX Ex-proof coil.
9. Body brass, seals PTFE with graphite, internals and piston stainless steel.
10. Voltage options 12vdc, 24vdc, 24vac, 110vac or 230vac, 48 volt, 380 volt or special voltage please contact us.

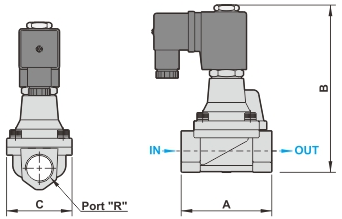

Main Dimension of PU225S series Steam Solenoid Valve:

Technical Data of PU225S series Steam Solenoid Valve:

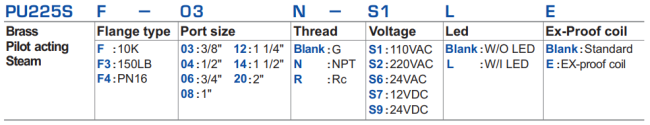

Ordering Code of PU225S series Steam Solenoid Valve:

Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:

PU220A Series	PU225A Series
SPU225A Series	PU225S Series
