C113685 C113686 Diaphragm For ASCO Pulse Valve SCG353A050 SCG353A051

C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Ordering Number of Diaphragm For ASCO Pulse Valve:

Main Dimension of C113685, C113686 Diaphragm:

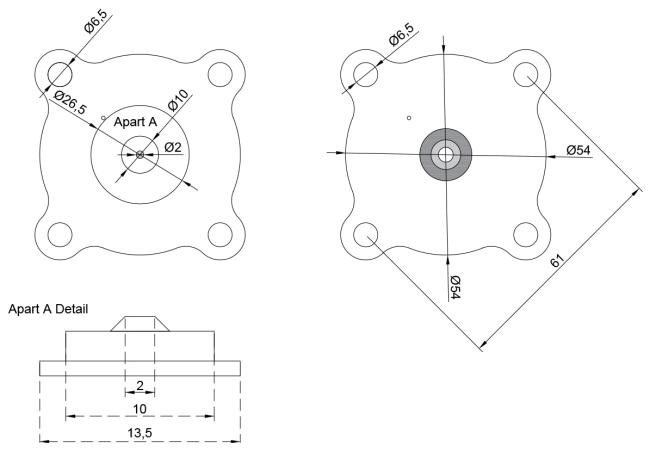

Secondary Diaphragm:

Main Diaphragm:

Product Video of C113685, C113686 Membrane:

Pictures of Pulse Valve Diaphragm Production:

More Related Products For you to choose:

Threaded Type	Remote Pilot Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
