4'' DN100 Flanged Water Fountain Solenoid Valve IP68 Underwater 24V 220V

Price Negotiable

Price: Negotiable

MOQ: 1 pc

Delivery Time: 4-8 days

Brand: Brando

Product Description

4'' DN100 Flanged Water Fountain Solenoid Valve IP68 Underwater 24V 220V

BRANDO manufactures waterproof solenoid valve with IP68 protection class for underwater use. It can be used for 10 meters underwater. Available in Stainless Steel, Brass, Cast Steel and PVC material for your choice. Widely used in water fountain, SPA, swimming pool and any applications which require a waterproof solution.

1. Structure: Diaphragm Operated, Piston Operated
2. Function: Normally Closed or Normally Open
3. Body Material: Brass, Stainless Steel, Cast Steel, and PVC
4. Size Range: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 3'', 4'', 5'', 6''
5. Connection Type: Threaded, Flanged
6. Seal Material: NBR, FKM, EPDM
7. Voltage.12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
8. Voltage Tolerance: +10%
9. Any special requirements, please consult us and we will help you resolve the issue and select the right valve!

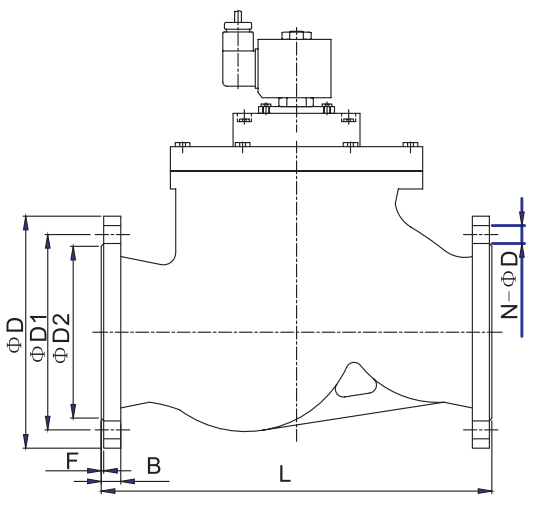

Dimension of Fountain Solenoid Valve:

No	46B65F	46B80F	46B100F	46B125F	46B150F
L	290	310	350	400	480
D	185	200	220	250	285
D1	145	160	180	210	240
D2	118	132	156	184	211
B	20	20	22	22	24
F	3
N-φD	4-φ18	8-φ18			8-φ22

Technical Data of Fountain Solenoid Valve:

Model	46B65F	46B80F	46B100F	46B125F	46B150F
Orifice Size (mm)	65	80	100	122	150
Port Size (Inch)	2-1/2''	3''	4''	5''	6''
Connection Type	Flanged
Medium	Water, Air
Action	Pilot Piston Operated
Function	2 Way Normally Closed
Body Material	Stainless Steel, Cast Steel
Seal Material	NBR, FKM, EPDM
Pressure Range	0.1 to 2.5 MPa
Temperature Range	NBR: -10 to +80℃ EPDM: -30 to +120℃ FKM: -30 to +150℃
Coil Voltages	AC: 24V, 120V, 240V (60Hz), 110V, 220V (50Hz) DC: 12V, 24V
Coil Power	26VA, 13W
Protection Class	IP68 Waterproof
