Manual Reset Normally Open Gas Solenoid Valve 1/2'' 3/4'' 1'' 24V 110V 220V

This is a normally open manual reset gas solenoid valve, 1/2'', 3/4'' or 1'' port size, 500 mbar max working pressure, brass body, NBR or FKM seal, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc, suitable to shut-off gas and signal danger sent by gas detectors (methane, LPG, carbon monoxide and similar), safety thermostats, etc.

Product Features:
1. Port Size: 1/2'', 3/4'', 1''
2. Orifice Size: 15mm, 20mm, 25mm
3. Function: 2 Way Normally Open
4. Body Material: Brass
5. Seal Material: NBR or FKM
6. Max Pressure: 500 mbar
7. Ambient Temperature: -15 to +60 ℃
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

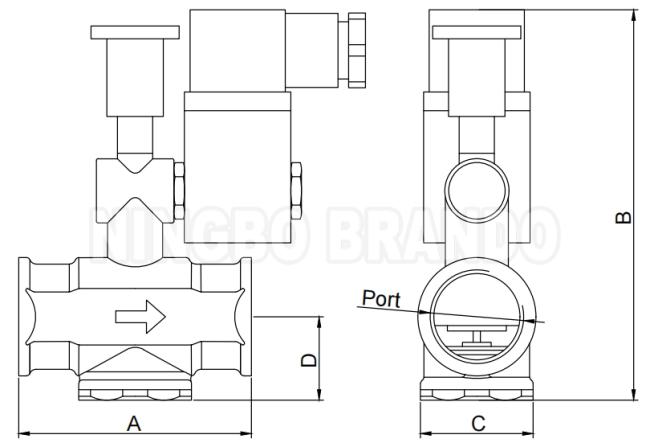

Main Dimension:

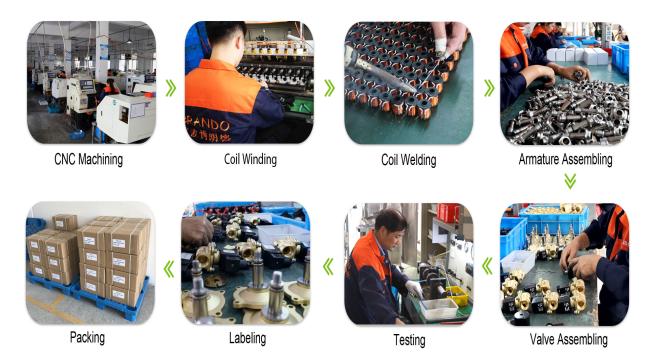

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
