High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V

High Pressure Water Air Stainless Steel Solenoid Valve 100 Bar 12V 24V

Product Features of high pressure solenoid valve:

1. Working Medium: Air, Gas, Water, Liquid, etc
2. Medium Temperature Range: 0 to +120℃
3. Working Pressure Range: 6 to 100 Bar
4. Function: 2 Way, Normally Closed
5. Operation: Piston Pilot Operated
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE ()
8. Voltages: 12VDC, 24VAC, 24VAC, 110VAC, 220VAC (50/60Hz)

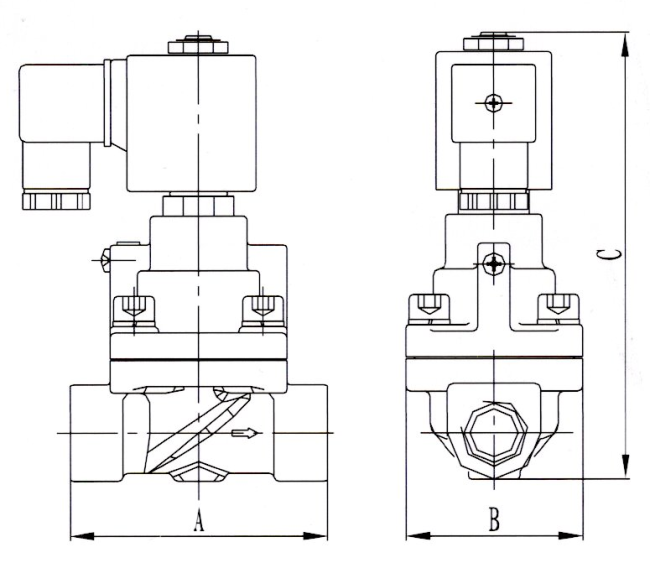

Dimension and Data of High Pressure Solenoid Valve:​

Brando Solenoid Valve Factory Production Video:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar
MAX 50 bar	MAX 70 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves
MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar
MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar
