150 bar Brass Water Air High Pressure Solenoid Valve 24VDC 110VAC 220VAC
150 bar Brass Water Air High Pressure Solenoid Valve 24VDC 110VAC 220VAC
Product Features:
1. Working Media: Water, Air, Gas, Liquid, etc
2. Working Pressure: 0.1 to 150 bar
3. Media Temperature: -60 to +200℃
4. Port Size: 1/8'', 1/4'', 3/8'', 1/2''
5. Orifice Size: 9mm
6. Body Material: Brass
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data:
|
Model No
|
Port Size
|
Orifice Size
|
Cv
|
Min Pressure
|
Max Pressure
|
Body
|
Seal
|
Voltage
|
|
|
AC
|
DC
|
||||||||
|
2 Way Normally Closed, Standard Coil
|
|||||||||
|
8DA1B090BXX
|
1/8''
1/4''
3/8''
1/2''
|
9mm
|
1.7
|
0.1 bar
|
50 bar
|
20 bar
|
Brass
|
PTFE
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
8DA2B090BXX
|
120 bar
|
50 bar
|
|||||||
|
2 Way Normally Closed, Energy Saving Coil
|
|||||||||
|
8DA21B090BXX
|
1/8''
1/4'' 3/8'' 1/2'' |
9mm
|
1.7
|
0.1 bar
|
80 bar
|
30 bar
|
Brass
|
PTFE
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
8DA22B090BXX
|
150 bar
|
80 bar
|
|||||||

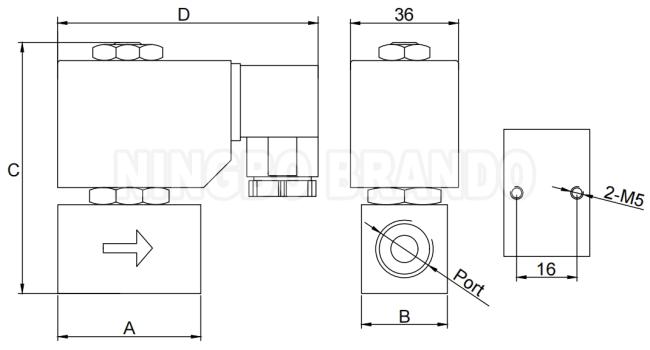

Overall Dimension:
|
Model No
|
Port
|
A
|
B
|
C
|
D
|
|
8DAXB090B01
|
1/8''
|
45
|
25
|
79
|
82
|
|
8DAXB090B02
|
1/4''
|
45
|
25
|
79
|
82
|
|
8DAXB090B03
|
3/8''
|
45
|
25
|
79
|
82
|
|
8DAXB090B04
|
1/2''
|
53
|
27
|
81
|
82
|

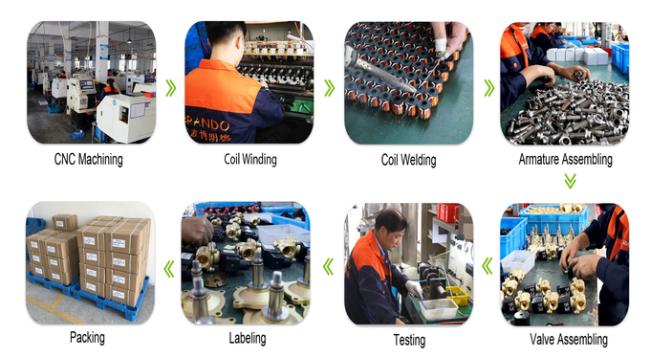

Our Production:
FAQ:
Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.
Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.
Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

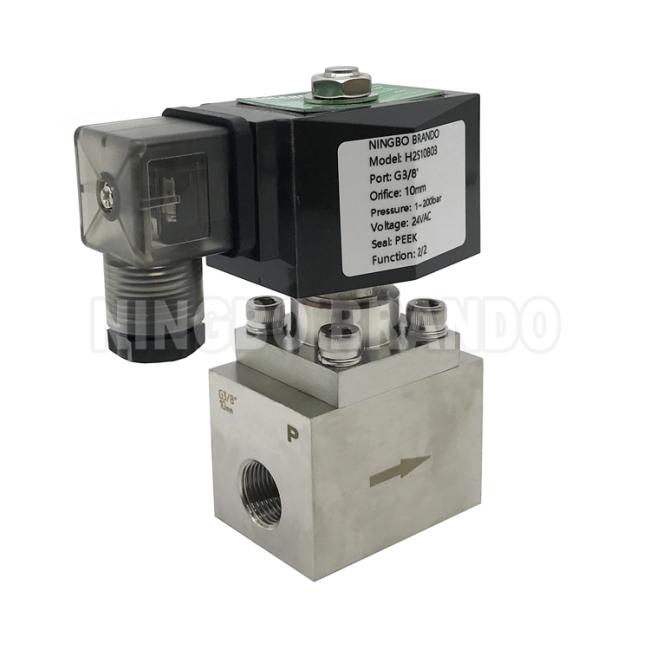

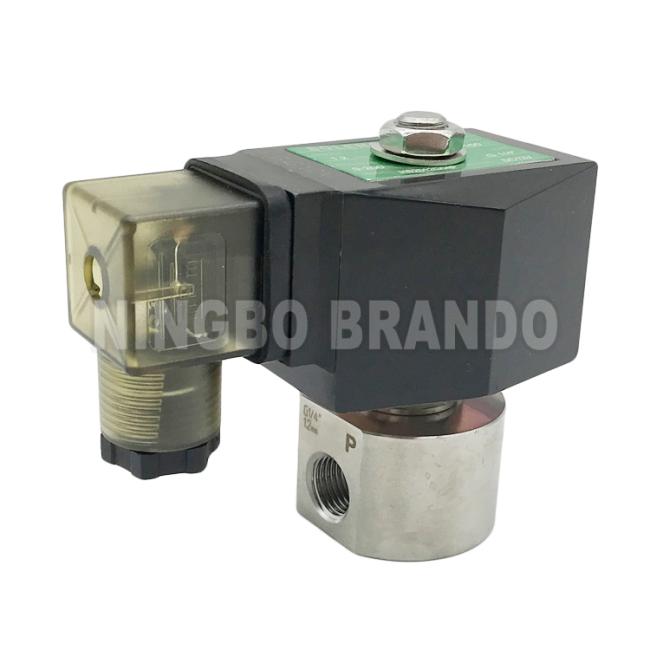

Similar Valves:
 |
 |
 |
 |
