24V 220V Compact Brass Solenoid Valve 2 Way Normally Open 1/4'' 3/8'' 1/2''

Product Features of Brass Solenoid Valve:

1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 1.0 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃), PTFE (-60 to +200℃)
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 6mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM, PTFE
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

2 Way Normally Closed

2 Way Normally Open

Main Dimension of Brass Solenoid Valve:

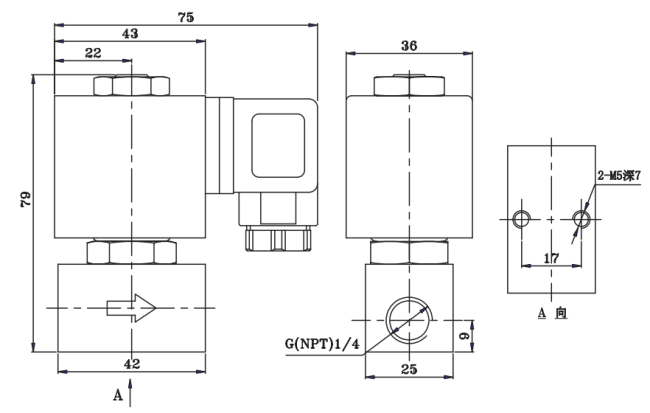

2 Way Normally Open, 1/4'' Port Size

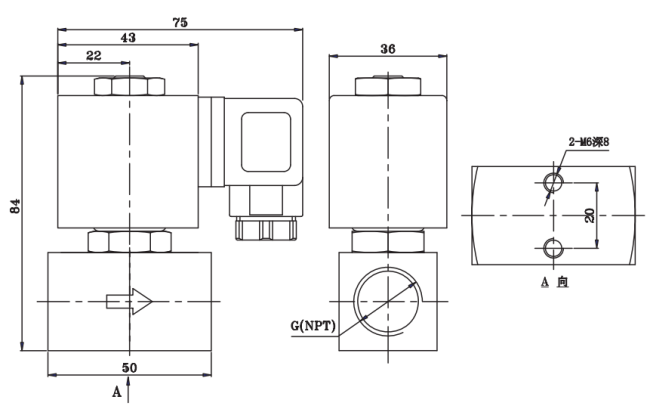

2 Way Normally Open, 3/8'' & 1/2'' Port Size

Brando Factory Production Video of Solenoid Valves:

BRANDO Factory Production Picture of Solenoid Valves:

Packaging and Shiping of Brando Solenoid Valves:

Internal Box	Carton	Pallet

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
