1/4'' 3-Way Direct Acting Stainless Steel Solenoid Valve Normally Closed​

Product Features of Stainless Steel Solenoid Valve:

1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 1.0 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/4''
5. Orifice Size: 6mm
6. Body Material: Brass, Stainless Steel (304, 316)
7. Seal Material: NBR, EPDM, FKM

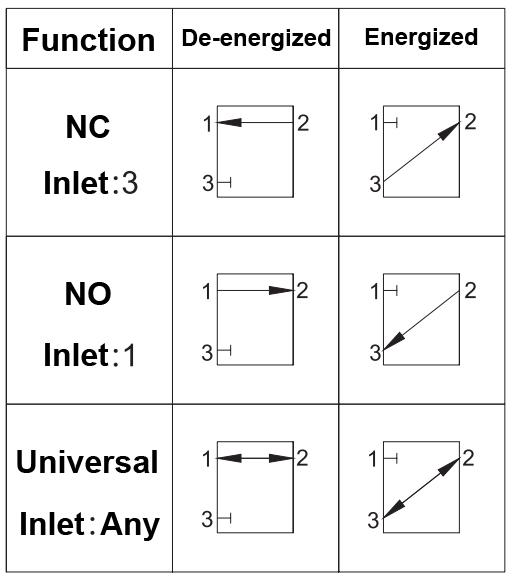

8. Function: 3 Way Normally Closed, 3 Way Normally Open, Universal
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Stainless Steel Solenoid Valve:

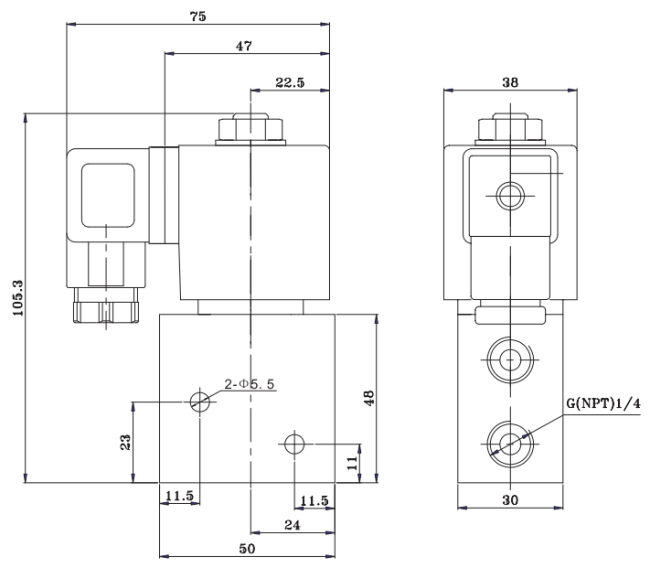

Main Dimension of Stainless Steel Solenoid Valve:

Brando Factory Production of Solenoid Valves:

Focus on your demands, Offer you best solution:
