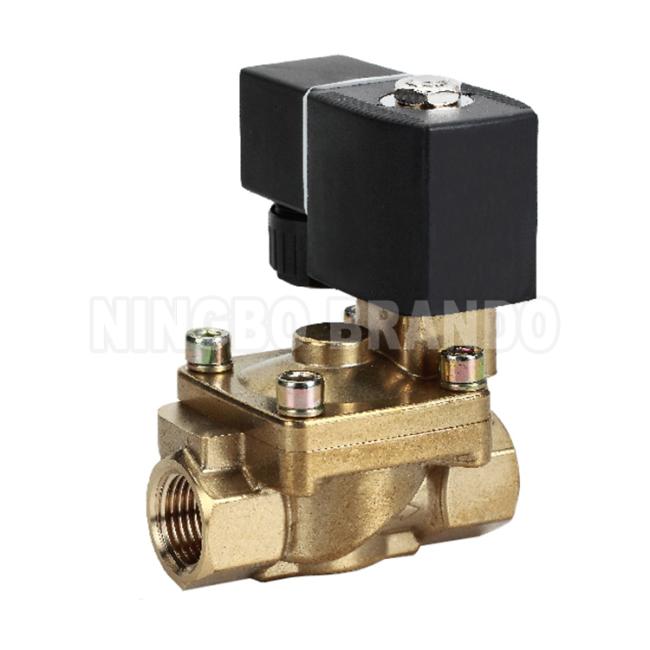

40 bar Brass High Pressure Solenoid Valve For Blow Molding Machine 220V 110V 24V

40 bar Brass High Pressure Solenoid Valve For Blow Molding Machine 220V 110V 24V

This is a high pressure solenoid valve, popularly used in bottle blowing machine, blow molding machine, air compressor, etc; 1/4'' to 1'' female threaded port size; 14.5mm orifice size; 2 way normally closed; diaphragm pilot operated; 1 to 40 bar working pressure; standard NBR diaphragm, can be customized as PU diaphragm; various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc.

Technical Data:

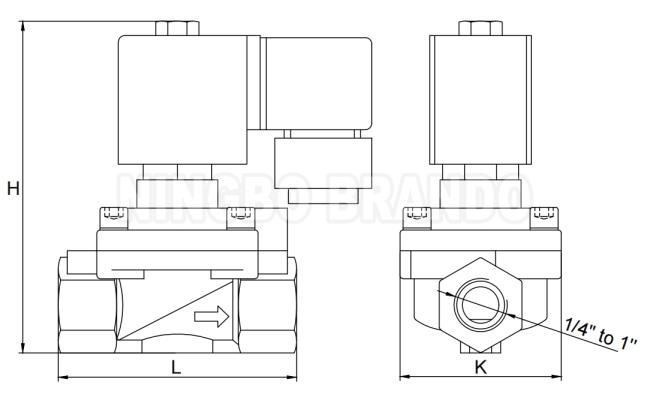

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

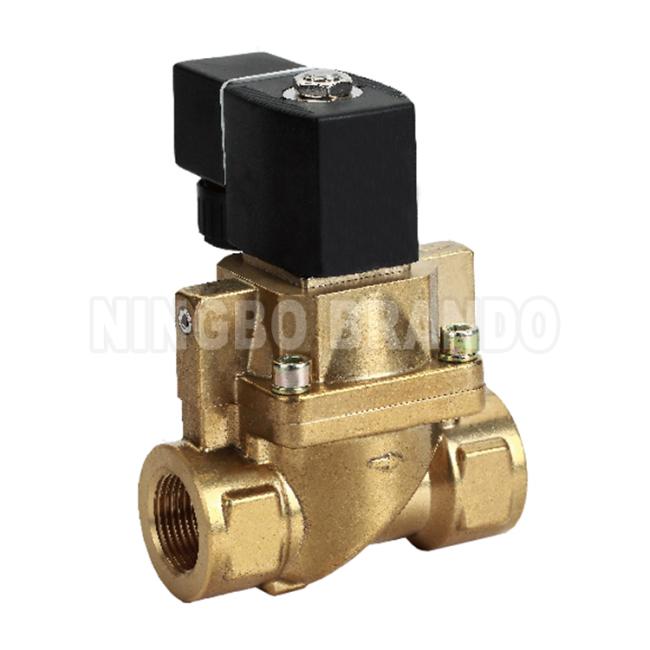

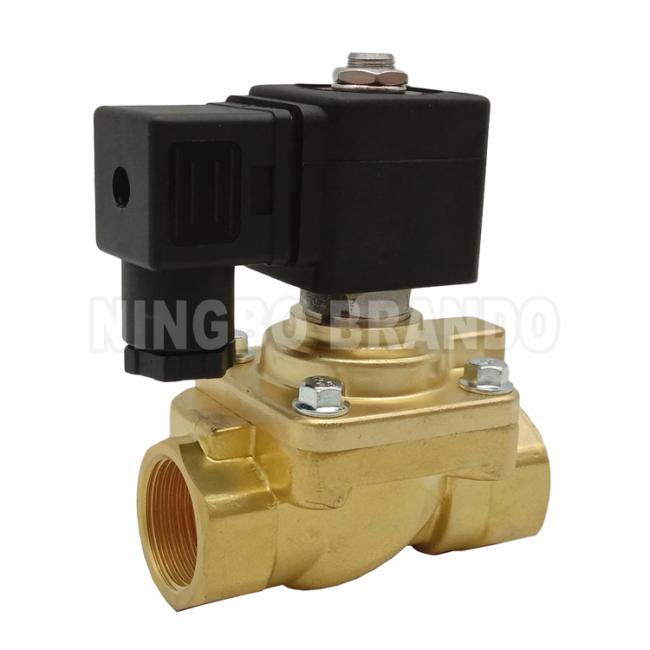

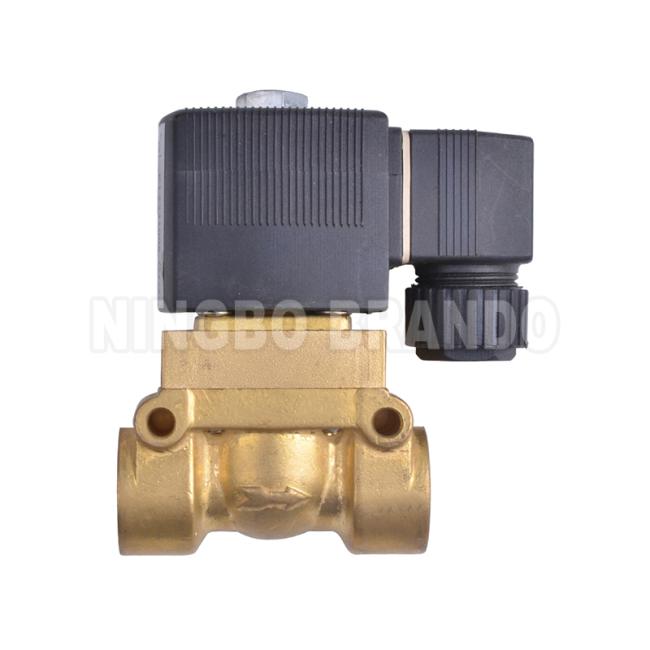

Similar Products:

Max 40 bar	Max 40 bar	Max 40 bar	Max 40 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
