4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC
4V430C-15 1/2'' Airtac Type Pneumatic Valve Close Center 220V AC
Product Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Three position Solenoid Air Valves have three kinds of central function for your choice;
4. Double control Solenoid Air Valves have memory function;
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
6. No need to add oil for lubrication;
7. It is available to form integrated valve group with the base to save installation space;
8. Affiliated manual devices are equipped to facilitate installation and debugging;
9. Several standard voltage grades are optional;
Technical Data of 4V400 Series Solenoid Valve:
|
Model
|
4V410-15
|
4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|
Fluid
|
Air (to be filtered by 40μm filter element)
|
||||
|
Acting
|
internal pilot or external pilot
|
||||
|
Port Size
|
in=out=exhaust=1/2''
|
||||
|
Orifice Size
|
4V410-15, 4V420-15: 48.0mm² (Cv=2.82)
4V430C-15: 40.0mm² (Cv=2.35)
|
||||
|
Valve Type
|
5 way 2 position
|
5 way 3 position
|
|||
|
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
||||
|
Proof Pressure
|
1.2MPa (175psi)
|
||||
|
Temperature
|
-20 to 70℃
|
||||
|
Body Material
|
Aluminum Alloy
|
||||
|
Max Frequency
|
3 cycle/sec
|
||||
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
||||

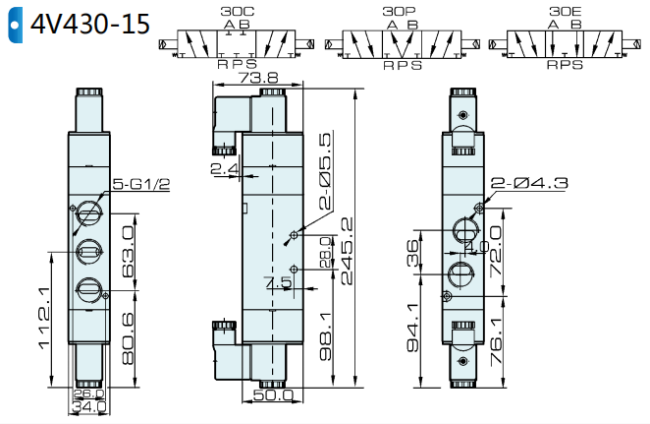

Main Dimension of 4V430C-15 Solenoid Valve:
Video of 4V430C-15 Solenoid Valve:
Production Video of Pneumatic Valve:
