2'' Membrane For Joil Dust Collector Pulse Valve JISI50 JIFI50 JIHI50
2'' Membrane For Joil Dust Collector Pulse Valve JISI50 JIFI50 JIHI50
This diaphragm is used in Joil pulse valve JISI50, JISR50, JIFI50, JIFR50, JIHI50, JIHR50. Diaphragm material is NBR. Pulse Jet valves are also called as dust collector. They are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Ordering Code of Diaphragm For Joil Pulse Valve:
|
Brando Number
|
Type
|
Suitable valve
|
Material
|
|
J20
|
3/4''
|
JICI20, JICR20,
JISI20, JISR20
|
NBR
|
|
J25
|
1''
|
JICI25, JICR25,
JISI25, JISR25
|
|
|
J40 + J20
|
1 1/2''
|
JICI40, JICR40,
JISI40, JISR40, JIFI40, JIFR40,
JIHI40, JIHR40
|
|
|
J50 + J20
|
2''
|
JISI50, JISR50,
JIFI50, JIFR50,
JIHI50, JIHR50
|
|
|
J65 + J20
|
2 1/2''
|
JISI65, JISR65,
JIFI65, JIFR65, JIHI65, JIHR65
|
|
|
J80 + J20
|
3''
|
JISI80, JISR80,
JIHI80, JIHR80
|
|
|
J100 + J20
|
4''
|
JIHI100, JIHR100
|
|
|
Tips: FKM, EPDM are all available.
|
|||

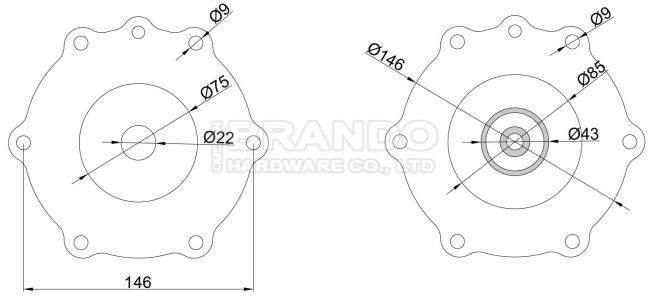

Main Dimension of 2'' Pulse Valve Diaphragm:
Video of 2'' Pulse Valve Diaphragm:
Pictures of Solenoid Valve Membrane Production:
More Products For Joil Pulse Valve for you to choose:
 |
 |
 |
 |
| Valve Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
