3 Way Brass Solenoid Valve 6027 C 2.0 NBR FKM 1/8'' 1/4'' 24V 120V 230V

3 Way Brass Solenoid Valve 6027 C 2.0 NBR FKM 1/8'' 1/4'' 24V 120V 230V

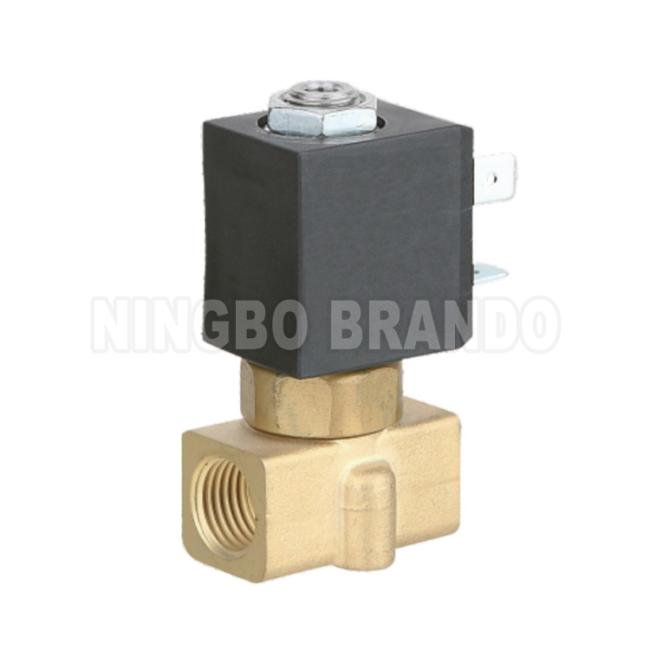

This is a 3 way normally closed brass solenoid valve similar to 6027 C, 1/8'' or 1/4'' female threaded port size, 1.5mm or 2mm orifice size, plunger direct acting, 0 to 16 bar working pressure, standard NBR seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

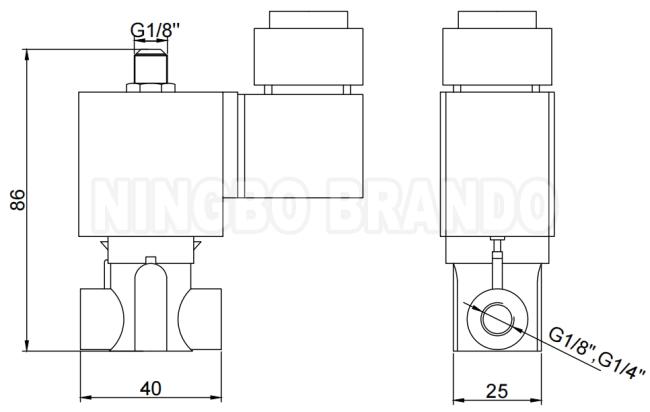

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Valves:

3 Way, Max 16 bar	3 Way, Max 12 bar	3 Way, Max 40 bar	3 Way, Max 10 bar
