316 Stainless Steel Solenoid Valve 6027 A 3.0 4.0 5.0 6.0 10.0 1/4'' 3/8'' 1/2'' 24V 230V

316 Stainless Steel Solenoid Valve 6027 A 3.0 4.0 5.0 6.0 10.0 1/4'' 3/8'' 1/2'' 24V 230V

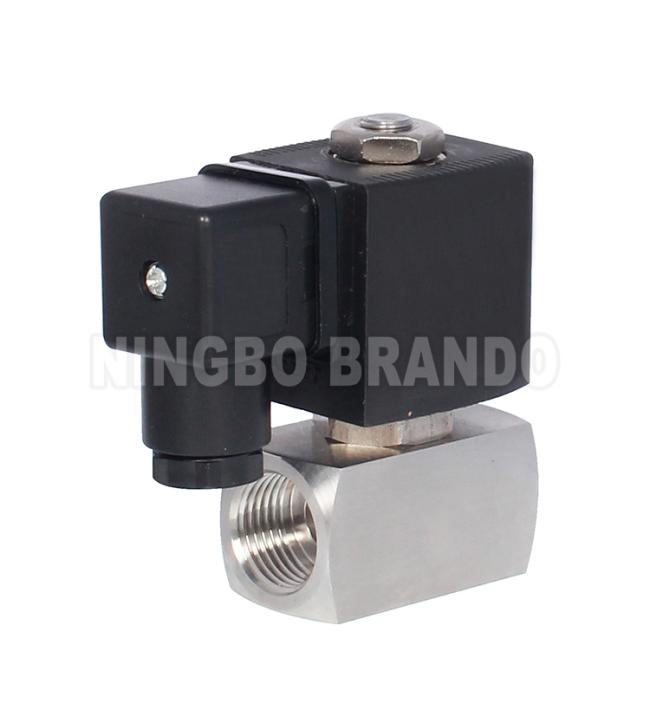

This is a stainless steel 316 solenoid valve similar to 6027 A, 1/4'' to 1/2'' female threaded port size, 3 to 10mm orifice size, 2 way normally closed, plunger direct acting, 0 to 25 bar working pressure, standard NBR seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

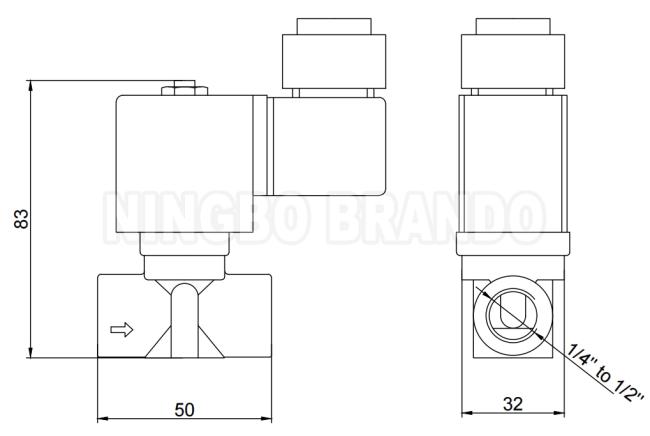

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

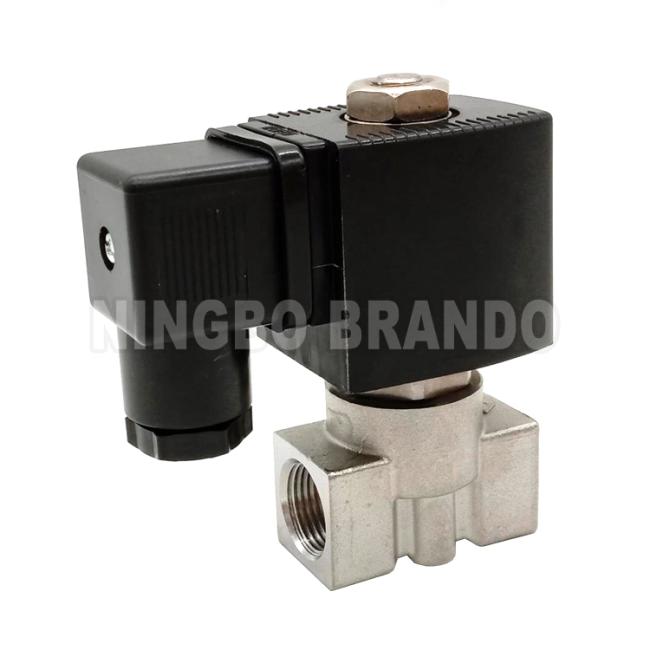

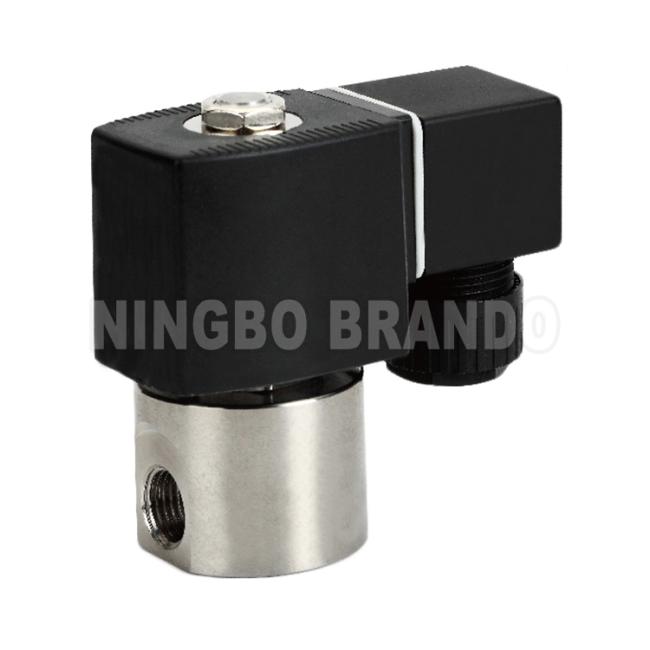

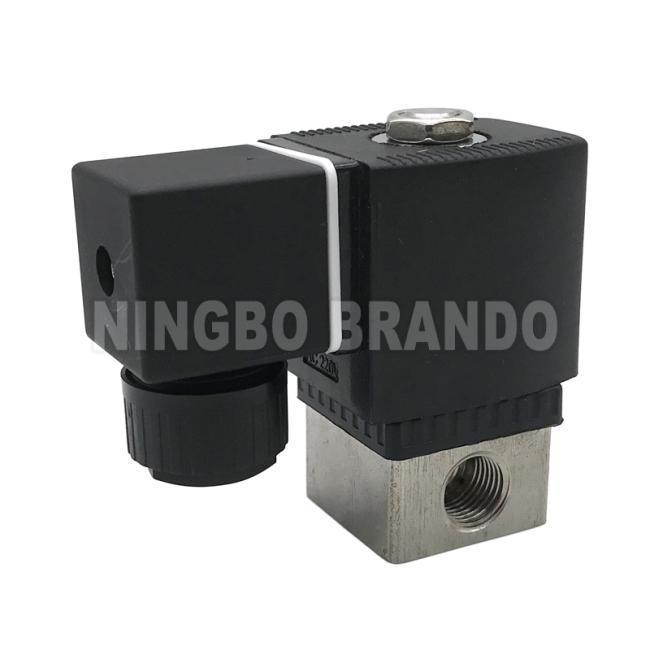

Similar Valves:

Max 30 bar	Max 40 bar	Max 40 bar	Max 120 bar
