4 MPa High Pressure Brass Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 24V 110V 220V
4 MPa High Pressure Brass Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 24V 110V 220V
Product Features:
1. Working Medium: Air, Water, Gas, Liquid, etc.
2. Working Pressure Range: 0.5 to 40 bar
3. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
4. Orifice Size: 14mm, 25mm, 40mm
5. Body Material: Brass, Stainless Steel
6. Seal Material: NBR, FKM, PTFE
7. Function: 2 Way Normally Closed
8. Operation: Piston Pilot Operated
9. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data of Solenoid Valve:
|
Port Size (inch) |
Orifice Size (mm) |
Kv Value (m³/h) |
Pressure Range (bar) |

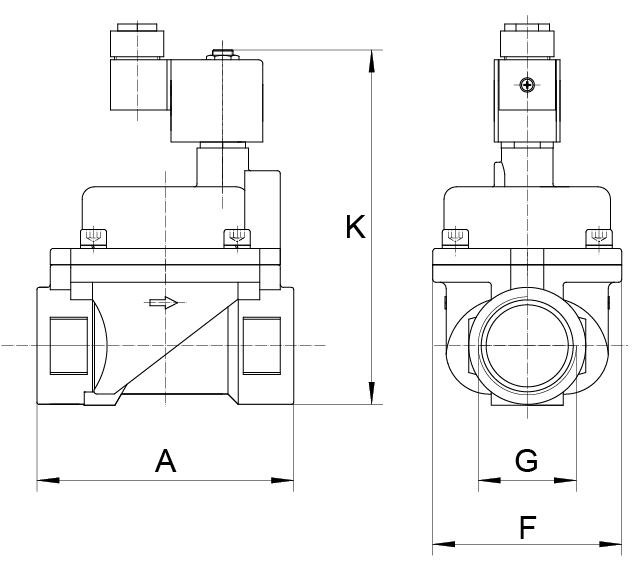

Body Material | Seal Material | Dimension | ||
| A | F | K | ||||||
| 2 Way Normally Closed, Piston Pilot Operated | ||||||||
| 1/4'' | 14 | 1.5 | 0.5 to 40 |
Brass Stainless Steel |
NBR: -10 to +80℃ EPDM: -30 to +120℃ FKM: -30 to +150℃ |
65 | 41 | 125 |
| 3/8'' | 14 | 3 | 0.5 to 40 | 65 | 41 | 125 | ||
| 1/2'' | 14 | 3.8 | 0.5 to 40 | 65 | 41 | 125 | ||
| 3/4'' | 14 | 4.2 | 0.5 to 40 | 69 | 41 | 131 | ||
| 25 | 9 | 0.5 to 40 | 92 | 60 | 147 | |||
| 1'' | 25 | 11 | 0.5 to 40 | 92 | 60 | 147 | ||
| 1 1/4'' | 40 | 23 | 0.5 to 40 | 125/135 | 92 | 173 | ||
| 1 1/2'' | 40 | 24 | 0.5 to 40 | 125/135 | 92 | 173 | ||
| 2'' | 40 | 28 | 0.5 to 40 | 129 | 92 | 186 | ||
BRANDO Solenoid Valve Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
 |
 |
 |
 |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
 |
 |
 |
 |
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
 |
 |
 |
 |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
 |
 |
 |
 |
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
