Stainless Steel Outdoor Battery Cabinet Temperature Control 3 Layer Battery For Telecom Station
Stainless steel Temperature Control Outdoor Battery Cabinet With 3 Layer Battery For Telecom Station
1. Application
The ET9090160-BA Outdoor Battery Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension: H×W×D 1600×900×900mm |
|
Layout |
1 compartment |
|
|
Door |
With one front door , and special lock for outdoor cabinet (support padlock) |
|
|
Material |
Cabinet body: single wall, stainless steel, 3mm thick. Cabinet frame and door: stainless steel, 1.5mm thick. |
|
|
Heat Insulation |
40mmPEF |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
DC48V air conditioner |
|
Lighting |
LED lamp |
48V LED lamp |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
|
|
Storage Temperature: -50°C ~ + 70°C |
|
|
|
Transport Temperature: -50°C ~ +70°C |
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
4. Accessories List
|
No. |
Item |
Quantity |
Unit |
Specs |
|
1 |
Outdoor Battery Cabinet |
1 |
Set |
(1)External Dimension: H×W×D 1600×900×900mm (2)One compartment: battery compartment (3)With one front door , and special lock for outdoor cabinet (support padlock) (4)Material: Cabinet body: single wall, stainless steel, 3mm thick. Cabinet frame and door: stainless steel, 1.5mm thick. |
|
2 |
Air Conditioner |
1 |
Set |
Cooling capacity: 500W, Power supply: DC48V. |
|
3 |
LED Lamp Sensor |
1 |
PC |
For controlling LED lamp on/off. |
|
4 |
LED Lamp |
1 |
PC |
DC48V |
|
5 |
Package |
1 |
Set |
Wooden Case |

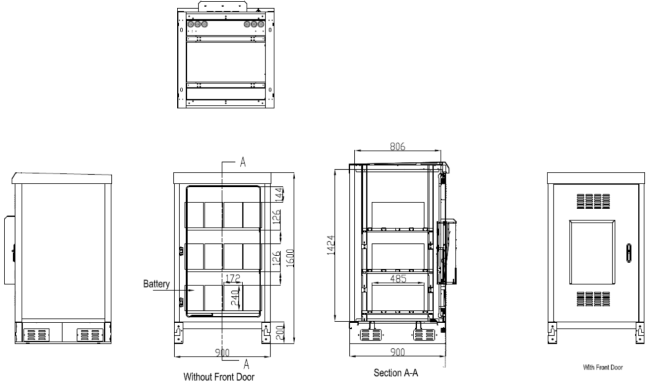

4. Cabinet Dimension
