CUMMINS QSK19-C675 Diesel Engine 125 Ton Hydraulic Crawler Excavator CE1250-7
Price:
Negotiation
MOQ:
1 set
Delivery Time:
25-45 workdays after receive the advance payment
Brand:
BONNY
Product Description
New BONNY 125ton CE1250-7 Diesel Hydraulic Crawler Excavator for sale
- Place of Origin: Wuxi, China (Mainland)
- Brand Name: BONNY
- Model Number: CE1250-7
- Condition: New
- Moving Type: Crawler Excavator
- Operating Weight: 100t
- Bucket capacity: 4.0~8.0m³
- Maximum Digging Height:14095mm/13164mm
- Maximum Digging Depth:10886mm/3103mm
- Machine Weight: 125t
- Max Digging Radius: 16598mm/11299mm
- Rated Speed: 2.4 km/h
- Certification: ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Diesel engine: CUMMINS QSK19-C675
- Diesel engine power: 503kw
- Max.torque: 3084 Nm
- Max. pulling force: 756kN
- Type of undercarriage: H structure
| No. | Item | Unit | Date | |||
| Face shovel | Backhoe | |||||
| 1 | Machine weight | t | 125 | 116 | ||
| 2 | Bucket capacity | Standard | m3 | 6.5 | 6.5 | |
| Range | m3 | 6.0~8.0 | 3.5~7.0 | |||

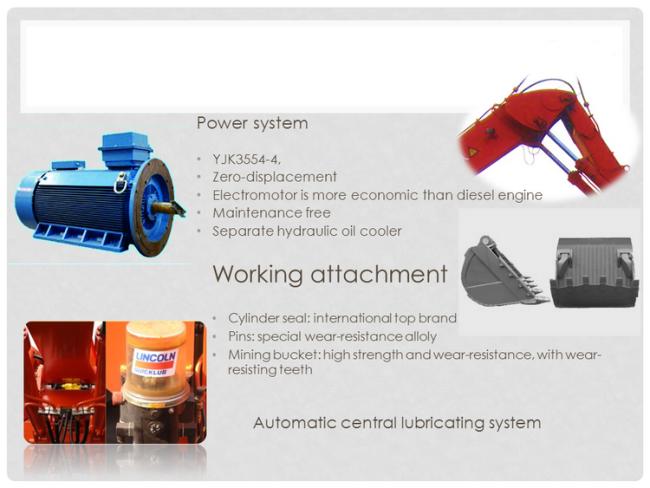

| 3 | Power system | Electromotor | Model | YJK4004-4 | ||
| Power /Speed | kW/rpm | 450/1485 | ||||
| Voltage | V | 6000 | ||||
| 4 | Hydraulic system | Type | Three pumps and three loops, limit load variable system | |||
| Max. pressure of main oil circuit | MPa | 32 | ||||
| Max. flow of main oil circuit | L/min | 2×522 | ||||
| Swing type | Independence open type | |||||
| Flow of swing oil | 1×522 | |||||
| Operating style | Pilot control | |||||
| Hydraulic oil tank capacity | L | 1278 | ||||
| 5 | Performance | Swing speed | r/min | 5.8 | ||
| Travel speed | km/h | 2.4 | ||||
| Max. pulling force | KN | 735 | ||||
| Gradeability | % | 70 | ||||
| Ground pressure | MPa | 0.127 | ||||
| Circulating time of operation | s | 22 | ||||
| 6 | Working date | Boom length | mm | 5450 | 7800 | |
| Stick length | mm | 3700 | 3400 | |||
| Max. digging radius | mm | 11299 | 13405 | |||
| Max. digging depth | mm | 3103 | 7315 | |||
| Max. digging height | mm | 13164 | 12529 | |||
| Max. unloading height | mm | 9572 | 8958 | |||
| Max. digging force of stick | KN | 523 | 416 | |||
| Max. breakout force of bucket | KN | 495 |
550
|
|||
Mining hydraulic excavator is featured with:
1.Face-shovel and backhoe are covered from 40-220t.
2.Diesel engine or power driven is available for the excavator with 46t and above.
3.Voltage grade for power driven excavator:380V low voltage or 6000V high voltage.
What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
