China Construction Machinery Supplier Electric Vibratory Plate Compactor For You With Good Quality
China construction machinery Supplier electric vibratory plate compactor for you with good quality

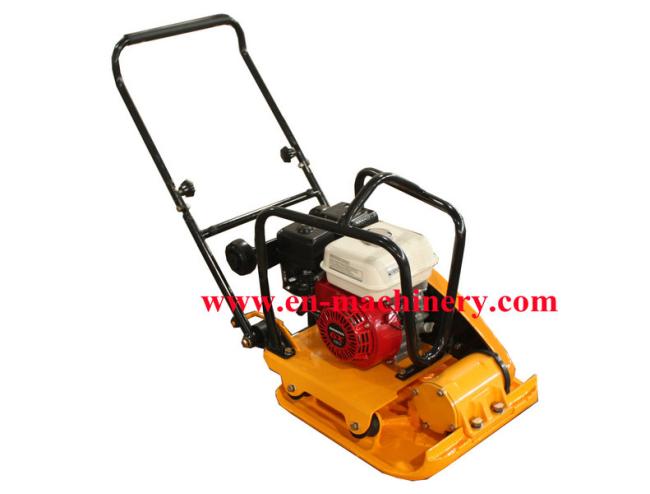

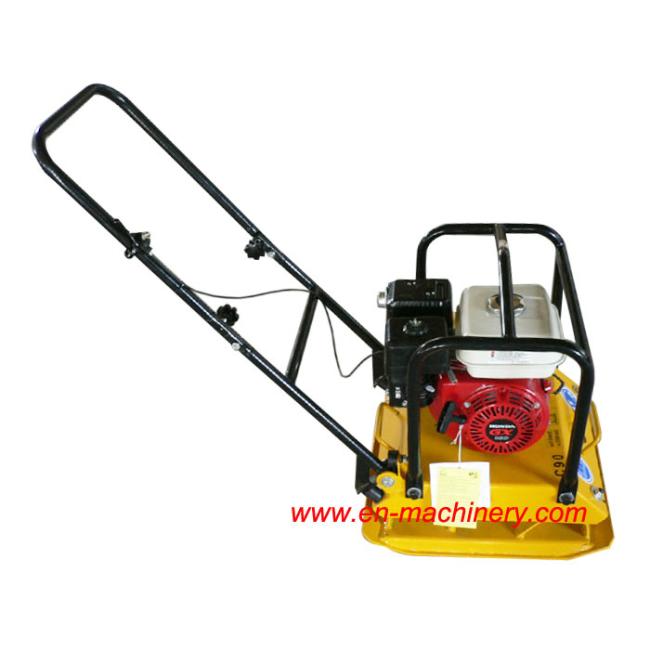

Plate compactor is ideal for sand, gravel and mixed soils in narrow trenches and along foundations, walls and abutments.
I will response within 24 hours and our products have 6 months warranty and lifetime maintenance. We can do OEM /ODM order
Features
1) Low maintenance
2) Less time and less cost for repaire. Reduce vibration of upper engine and handle
3) Straight handle is also available
4) Seald belt cover prevents sand and soil
Certifications:
European CE, ISO 9001:
We can do OEM orders.
It is used to tamper engineering foundation, road margin and asphalt surface on constructing road, street, building, ditch and bridge in the field of road, municipal engineering, construction and water conservancy etc. It is better used tamping of narrow laneway.
HONDA engine, excellent performance, easy to start-up;
Manganese alloy steel plate or nodular cast iron plate, anti-friction and anti-vibration;
|
| Model | CD60-1 | CD60-2 | CD60-3 | CD80-1 | CD80-2 | CD90 | CD100-1 | CD100-2 | CD120 | CD160 |
| engine(optional) | Honda | Robin | Lifan | Honda | Robin | Lifan | Honda | Honda | Robin | Lifan |
| power | 5.0-6.5HP | 5.0-6.5HP | 3.0KW | 5.0-6.5HP | 5.0-6.5HP | 5-7.5HP | 5.0-9.0HP | 5.0-9.0HP | 5.0-9.0HP | 5.0-9.0HP |
| impact force(KN) | 11 | 11 | 10.5 | 12 | 13 | 15 | 17 | 17 | 20 | 25 |
| speed(RPM) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| compaction depth(mm) | 150 | 150 | 150 | 180 | 180 | 200 | 200 | 200 | 200 | 300 |
| working speed(m/min) | 20 | 20 | 25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 15-20 |
| weight(kg) | 60 | 60 | 70 | 75 | 80 | 90 | 90 | 90 | 100 | 120 |
| size(mm) | 820*350*800 | 820*350*800 | 820*350*750 | 850*400*800 | 850*400*800 | 900*450*800 | 900*450*800 | 900*450*800 | 1200*480*900 | 800*500*1050 |
