Cold Forged Concrete In Anchor Pin Type Anchor Fasteners For Concrete Drop
Cold Forged Concrete In Anchor Pin Type Anchor Fasteners For Concrete Drop
Description:

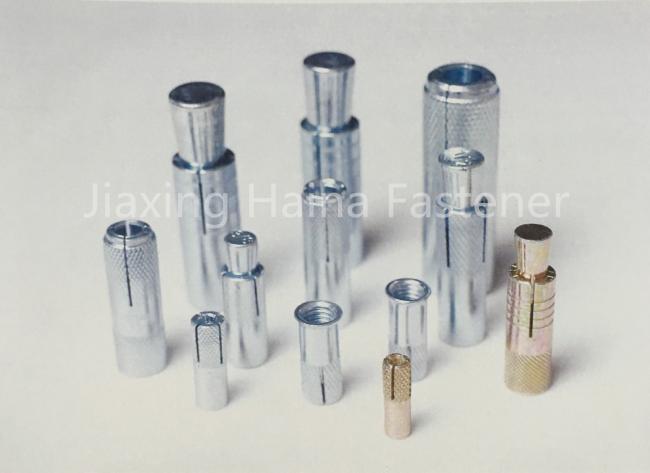

An anchor bolt is used to attach objects or structures to concrete. Drop in anchor is one type of Concrete anchor bolt. Drop in anchor is internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials.
Available material in stainless steel , carbon steel, short or coil-thread versions. Nominal diameter of the threaded insert is equal to the minimum thread engagement.
Anchor bolts are cylindrical fasteners that are used to connect objects and structural elements to concrete. Anchor bolts may be used for everything from holding a home to its foundations to attaching heavy industrial machinery to a factory floor. When installed correctly, they form a very firm, solid connection that will last for decades. Anchor bolts can be purchased in some hardware stores and through construction supply companies as well as manufacturers.
Specification:
| Products name | Drop in anchor | ||||||
| Related Products | Wedge anchor,Drop in anchor, expension bolt,shield anchor,Chemilcal anchor,Hollow wall anchor,Sleeve anchor,Concrete anchor bolt | ||||||
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
| Material | Stainless Steel: SS201, SS304, SS316 | ||||||
| Carton Steel: grade 4.8 | |||||||
| Finishing | Zinc(Yellow,White,Blue,Black) | ||||||
| Production Process |
Cold forging,Stamping and assembled | ||||||
| Customized Products Lead time |
Busy season:15-30days,Slack seaon:10-15days | ||||||
| Stock Products | Carbon steel:Drop in anchor.wedge anchor.Shield anchor,expension bolt Stainless steel: All DIN Or GB Standard stainless steel anchor |
||||||
| Free Samples for standard fastener | |||||||
Application:
USED BASIS: Concrete , Compact Dimention Stone and Solid Brick
USED FOR : Suspended Ceiling , Water pipe , Heavy duty thread rod
Installation:
|
1. Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Overhead installations need not be blown clean. |
| 2.Insert designated anchor into hole. Tap with hammer until flush against surface. |
| 3.Using the designated drop-in setting tool, drive expander plug towards to the bottom of the anchor until shoulder of setting tool makes concrete with the top of the anchor. |
| 4.Minimum thread engagement should be equal to the nominal diameter of the threaded insert. |
Related Products:
Contact us:
Jiaxing Haina has varieties and complete specifications fastener product.Major products are stainless steel and grade 4.8/8.8/10.9 high intensity bolts , hexagon bolts , carriage bolts and all kinds of standard bolts , hexagon socket screws , self tapping screw , self drilling screws , hex nuts , threaded rod , anchor bolts and so on.
Maybe you can send your inquiry to our email : me@hainafastener.com , we will give you the price as soon as possible.Thank you.
