ASTM A193 B7 carbon steel Stud Blue Threaded Steel Bar Bolts and Nuts
ASTM A193 B7 carbon steel Stud Blue Threaded Steel Bar Bolts and Nuts
Description:
PTFE (Polytetrafluoroethene), abbreviations for PTFE, (commonly known as "plastics king, o 'hara"), brand name, PTFE ®
This kind of material products are generally referred to as "non-stick coating";Is a kind of using all the hydrogen atoms in the fluorinated polyethylene synthetic polymer materials.This material has the acid alkali resistance, resistance to the characteristics of various kinds of organic solvent, almost insoluble in all solvents.At the same time, ptfe has the characteristics of high temperature resistance, low coefficient of friction of it, so can make lubrication, also became the non-stick pan and ideal coating of pipe lining.
Specification for Zn-Ni Electroplated + PTFE top-coat Coated Stud-Bolts Coatings are applied on carbon and alloy steel bolts for the primary purpose of corrosion resistance especially when such bolts are exposed to adverse marine or coastal environments. Refer to DEP 30.48.00.32 – Gen for the requirement for coating of stud-bolts (fasteners) Before supply of any coated bolts, the warranty period and associated
corrosion protection coating condition shall be agreed by the Contractor with the Principal. A minimum warranty period of five (5) years shall be provided for the coating applied. However, the design life of coating shall be the same as the design life of stud-bolt.
The coating type selected for flanged joints on carbon and alloy steel stud-bolts is Zn-Ni electroplating + PTFE topcoat. Zn-Ni electroplating in accordance to ASTM B841 + PTFE coating applied as top coat in
accordance with MESC SPE 81/007 supplementary requirements. The zinc-nickel alloy coating deposited from an alkaline, cyanide free, electrolyte shall have 6-8% Ni with yellow iridescent passivate or 12 to
18% nickel and the balance being zinc. The normal coating thickness of this system is 10 microns. The coating thickness shall be 5 to 10 microns on parts with external threads and 8 to 18 microns on parts
without threads. The maximum coating thickness from an alkaline cyanide free electrolyte should be 25 microns.
Specification:
| Name: (Maichuan) | ASTM A193 B7 carbon steel Stud Blue Threaded Steel Bar Bolts and Nuts |
| Standard | DIN975 DIN976 ASTM A193 ASTM A320 |
| Standard No | ASTM A193 ASTM A320 |
| Nut Standard | 2H 2HM A194 A325 |
| Thread Type | UNC, UNF, UNEF, M, BSW, BSF, TR, ACME, NPT TP |
| Material | Alloy Steel(40Cr/35CrMo/4140) |
| Dimension | Metric size from 6mm-100mm, Inch size from 1/8"-3-1/2". |
| Surface treatment |
PTFE, PTFE, Xylan Blue, treatment: Plain, black finished, Zinc plated (Galv), Hot DIP Galvanized, Nickel, phosphate black, |
| Sample | Free |
Application:
Widely used in natural gas engineering, petroleum engineering, Marine engineering and other large-scale application engineering
Advantages:
1. Rich manufacture experience.
2. Specialized in manufacturing electric power fittings.
3. Strict quality control and excellent after-sales service..
4. Domestic and Overseas markets.
5. Well equipped with complete facilities.
6. High quality with competitive price

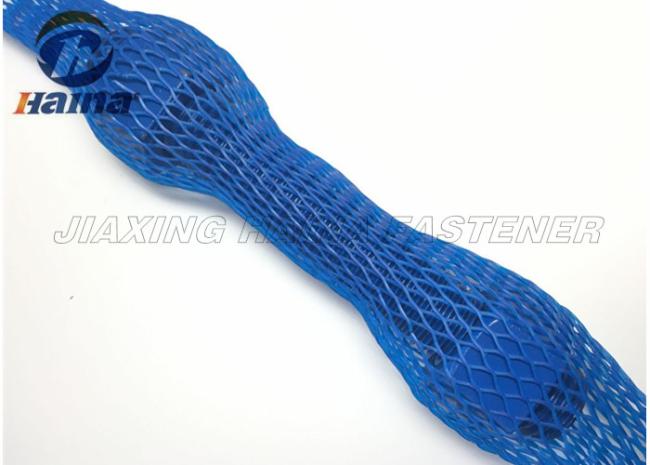

Pictures:
