Carbon Steel Cold Forging 40mm - 360mm Zinc Plated Concrete Drop In Anchor
Carbon Steel Cold Forging 40mm - 360mm Zinc Plated Concrete Drop In Anchor
Description:

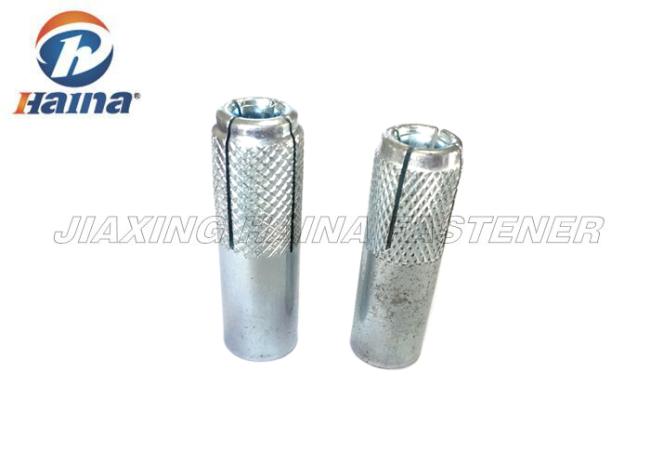

Drop-In anchors are female concrete anchors, which is designed for anchoring into concrete things, such walls, when install the AC. Drop the anchor into the predrilled hole in the concrete. Using a setting tool expands the anchor within the hole in the concrete. It need a setting tool to install the Drop-in Anchor. Concrete Anchor Bolt.
Body material stainless steel, carbon steel and other metal materials.
Drop-in expansion bolt ia also called drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel, short or coil-thread versions, and thread inside. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Moreover, we can also supply chemical anchor stud, tie wire anchor,flange sleeve anchors, hex Nut sleeve anchors, Hex bolt sleeve anchors,bolt anchors;heavy duty shield anchors; lag screw anchors.,double expansion anchors;single expansign anchors,easy drive anchors, drop in anchors;drop in anchors with lip,Ceiling anchors,Metal Frame anchors;Nylon hammer fixing anchors;Nylon frame fixing anchorsToggle bolts,Hollow wall anchors.
Specification:
| Product Name | Carbon Steel Zinc Plated Drop in Expansion Anchor Bolt Concrete Anchor Bolt |
| Drop in Anchor Size | M6-M24 or non-standard customized & design& OEM |
| Length | 40mm-360mm or non-standard customized & design& OEM |
| Grade | 4.8, 6.8, 8.8, 10.9, 12.9 |
| Standards Supply | GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc |
| Material Type | carbon steel, alloy steel, Stainless steel |
| Surface Treatment | Zinc plated or YZP |
| Testing Equipment | Projecting apparatus Salt Spray Test, Durometer, and Coating Analyzer,Tensile Machine |
| Management System | ISO9001:2008 |
| Certification | SGS,Material Certication,PPAP,BV |
| Warranty | Replacement at all our cost for rejected products |
Application:
For installation substrate: concrete, natural hard stone.
This product is suitable for heavy-duty range on the occasion of the screw and the inner teeth fixed, fire equipment, air conditioning and hot water pipe exhaust pipe installation, walls, ceiling, etc. Discard the pipe duct.
In the prototype of a dedicated plug to fully inflate the body that is fixed to the base, making it easy and fast to install.
Calibration values are in tension strength of cement 260 & mdash; the resulting testing 300㎏s / C㎡ conditions, shall not exceed the safe maximum load calibration is worth 25%.
Advantages:
1. Applying anchor bolt, expension bolt. Wedge anchor, sleeve anchor. Etc
2. Customize fastener is welcomed.
3. One stop service
4. Good quality
5. Free samples
Packing Details:
1. Paper Carton Size: 25*16*25CM
2. Wooden Pallet/ Wooden Case Size: 110*90*80CM
3. Color Printed Box&Cartons can be made per customers' desire.
4. Plastic Bag
